CSocket Class Reference

#include <Socket.h>

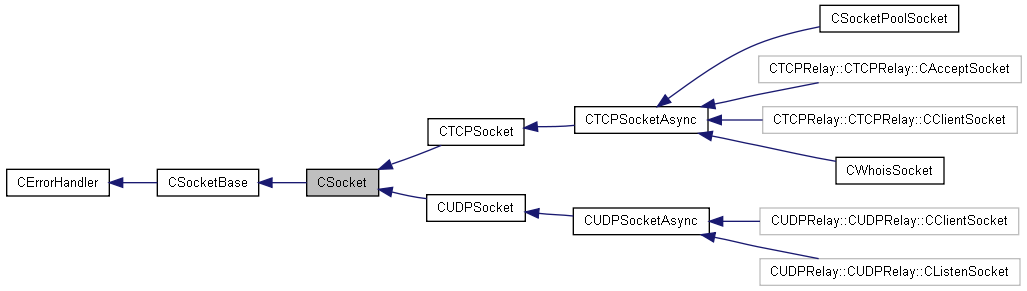

Inheritance diagram for CSocket:

[legend]

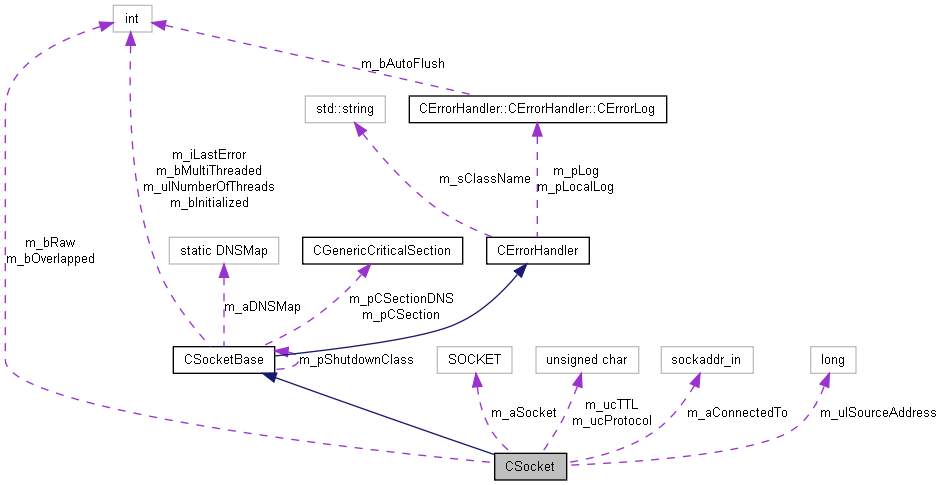

Collaboration diagram for CSocket:

[legend]

List of all members.

Public Types
enum	_SocketShutdown { ssReceive, ssSend, ssBoth }
typedef enum CSocket::_SocketShutdown	SocketShutdown
Public Member Functions
unsigned char	GetProtocol () const
void	SetProtocol (unsigned char iProtocol)
BOOL	IsRaw () const
BOOL	SetReceiveTimeout (unsigned long ulMS)
SOCKET	GetHandle () const
virtual SOCKET	Detach ()
BOOL	SetBroadcast (BOOL bBroadcast)
BOOL	IsCreated () const
BOOL	CanWrite () const
BOOL	CanRead () const
unsigned short	GetPeerPort () const
BOOL	Shutdown (SocketShutdown eHow)
long	GetPeerAddress () const
virtual int	Receive (char *pBuffer, unsigned long ulBufferLength)
virtual int	Peek (char *pBuffer, unsigned long ulBufferLength)
void	SetTTL (unsigned char ucTTL)
virtual void	SetSourceAddress (IP aSourceAddress)
virtual void	SetSourceAddress (const std::string &rSourceAddress)
virtual BOOL	Close ()
virtual IP	GetBindAddress () const
virtual unsigned short	GetBindPort () const
virtual BOOL	Bind (const std::string &rSourceAddress, unsigned short usPort)
virtual BOOL	Bind (IP aSourceAddress, unsigned short usPort)
virtual int	Send (IP aDestinationAddress, const char *pBuffer, unsigned long ulBufferLength, unsigned short usDestinationPort=0)
virtual int	Send (const std::string &rDestinationAddress, const char *pBuffer, unsigned long ulBufferLength, unsigned short usDestinationPort=0)
BOOL	Create (int iProtocol)
bool	operator== (const CSocket &rSocket) const
bool	operator< (const CSocket &rSocket) const
	CSocket (BOOL bRawSocket=false)
virtual	~CSocket ()
int	GetLastError () const
void	SetLocalLog (CErrorLog *pLog)
void	WriteError (const std::string &rClass, const std::string &rMethod, const std::string &rError) const
void	WriteMessage (const std::string &rClass, const std::string &rMethod, const std::string &rMessage) const
Static Public Member Functions
static int	GetErrorCode ()
static int	GetSystemLastError ()
static BOOL	IsInitialized ()
static unsigned long	StringToLong (const std::string &rAddress)
static char FAR *	LongToString (unsigned long ulAddr)
static std::string	LongToStdString (unsigned long ulAddr)
static BOOL	InitializeSockets (BOOL bMultiThreaded=TRUE, unsigned long ulNumberOfThreads=10)
static BOOL	ShutdownSockets ()
static unsigned long	GetNumberOfThreads ()
static BOOL	IsMultiThreaded ()
static CGenericCriticalSection *	GetGlobalCriticalSection ()
static unsigned long	ResolveDNS (const std::string &rAddress)
static BOOL	ValidAddress (const std::string &rAddress)
static std::string	GetCurrentDateTime ()
static std::string	ErrorCodeToString (DWORD dwErrorCode)
static void	RegisterError (DWORD dwErrorCode, const std::string &rDescription)
static void	SetLog (CErrorLog *pLog)
static void	WriteStaticError (const std::string &rClass, const std::string &rMethod, const std::string &rError)
static std::string	FormatData (const std::string &rClass, const std::string &rMethod, const std::string &rMsgOrError, bool bError=true)
Protected Member Functions
	CSocket (SOCKET aSocket)
void	SetConnectedTo (const sockaddr_in &rAddress)
IP	GetSourceAddress () const
unsigned char	GetTTL () const
BOOL	CheckSocketValid () const
void	AssignSocket (SOCKET aNewSocket, unsigned char ucProtocol=IPPROTO_TCP)
BOOL	ValidSocket () const
virtual void	InitializeIP ()
virtual int	ReceiveFrom (char *pBuffer, unsigned long ulBufferLength, IP &rIP, unsigned short &rSourcePort)
virtual void	NotifyShutdown ()
void	RegisterShutdown (CSocketBase *pBase)
void	SetLastError (const std::string &rMethod) const
void	SetLastError (const std::string &, int iErrorCode) const
const std::string &	GetClassName () const
virtual void	ReportError (const std::string &rMethod) const
virtual void	ReportError (const std::string &rMethod, const std::string &rMessage) const
virtual void	ReportError (const std::string &rMethod, const std::string &rMessage, DWORD dwAdditionalData) const
virtual void	ReportError (const std::string &rMethod, const std::string &rMessage, const std::string &rAdditionalData) const
virtual void	ReportError (const std::string &rMethod, int iErrorCode) const
virtual void	ReportError (const std::string &rMethod, const std::string &rMessage, int iErrorCode) const
virtual void	ReportErrorOS (const std::string &rMethod, const std::string &rMessage) const
void	SetName (const std::string &rName) const
Static Protected Member Functions
static void	ReportStaticError (const std::string &rClass, const std::string &rMethod)
static void	ReportStaticError (const std::string &rClass, const std::string &rMethod, const std::string &rMessage)
static void	ReportStaticError (const std::string &rClass, const std::string &rMethod, const std::string &rMessage, DWORD dwAdditionalData)
static void	ReportStaticErrorOS (const std::string &rClass, const std::string &rMethod, const std::string &rMessage)
Static Protected Attributes
static CGenericCriticalSection *	m_pCSection = NULL
Friends
class	CIPCrafter

---

Detailed Description

Definition at line 47 of file Socket.h.

---

Member Typedef Documentation

typedef enum CSocket::_SocketShutdown CSocket::SocketShutdown

---

Member Enumeration Documentation

enum CSocket::_SocketShutdown

Enumerator:

ssReceive
ssSend
ssBoth

Definition at line 51 of file Socket.h.

    {
        ssReceive,
        ssSend,
        ssBoth
    } SocketShutdown;

---

Constructor & Destructor Documentation

CSocket::CSocket

(

BOOL

bRawSocket = false

)

Definition at line 54 of file Socket.cpp.

                                : CSocketBase(),
                                    m_bRaw(bRawSocket)
{
    try
    {
        //Set our name
        SetName(CSocket_LOGNAME);

        //Initialize the data
        InitializeIP();
    }
    ERROR_HANDLER("CSocket")
}

CSocket::~CSocket

(

)

[virtual]

Definition at line 88 of file Socket.cpp.

{
    try
    {
        //Close the socket
        Close();
    }
    ERROR_HANDLER("~CSocket")
}

CSocket::CSocket

(

SOCKET

aSocket

)

[protected]

Definition at line 68 of file Socket.cpp.

                               : CSocketBase()
{
    //Check it's a valid socket
    if (aSocket!=INVALID_SOCKET)
        ReportError("CSocket","Received invalid socket!");
    else
        try
        {
            //Set our name
            SetName(CSocket_LOGNAME);

            //Initialize the data
            InitializeIP();

            //Save the handle
            AssignSocket(aSocket);
        }
        ERROR_HANDLER("CSocket")
}

---

Member Function Documentation

void CSocket::AssignSocket	(	SOCKET	aNewSocket,
		unsigned char	ucProtocol = IPPROTO_TCP
	)			[protected]

Definition at line 500 of file Socket.cpp.

{
    try
    {
        //Sets the protocol
        m_ucProtocol=ucProtocol;

        //Binds to a socket
        m_aSocket=aNewSocket;
    }
    ERROR_HANDLER("AssignSocket")
}

BOOL CSocket::Bind	(	IP	aSourceAddress,
		unsigned short	usPort
	)			[virtual]

Reimplemented in CTCPSocketAsync.

Definition at line 269 of file Socket.cpp.

{
    try
    {
        //Quit if not ok
        if (!CheckSocketValid())
            return FALSE;

        //Create the local address
        sockaddr_in soSrc;

        //Set to 0
        memset(&soSrc,0,sizeof(soSrc));
        soSrc.sin_family=AF_INET;

        //Populate the connection data
        if (aSourceAddress)
            soSrc.sin_addr.s_addr=aSourceAddress;
        else
            soSrc.sin_addr.s_addr=ADDR_ANY ;

        soSrc.sin_port=htons(usPort);

        //Now we need to bind it
        if (bind(GetHandle(),
                 (sockaddr*)&soSrc,
                 sizeof(soSrc)))
        {
            //Error
            SetLastError("Bind");

            //Exit
            return FALSE;
        }
        else
            //Save the address
            m_aConnectedTo=soSrc;

        //Save new addresses
        if (aSourceAddress &&
            !m_ulSourceAddress)
            m_ulSourceAddress=aSourceAddress;

        return TRUE;
    }
    ERROR_HANDLER_RETURN("Bind",FALSE)
}

BOOL CSocket::Bind	(	const std::string &	rSourceAddress,
		unsigned short	usPort
	)			[virtual]

Definition at line 318 of file Socket.cpp.

{
    try
    {
        //Quit if not ok
        if (!CheckSocketValid())
            return FALSE;

        if (rSourceAddress.empty())
            return Bind((IP)0,
                        usPort);
        else
            return Bind(inet_addr(rSourceAddress.c_str()),
                        usPort);
    }
    ERROR_HANDLER_RETURN("Bind",FALSE)
}

BOOL CSocket::CanRead

(

)

const

Definition at line 721 of file Socket.cpp.

{
    try
    {
        //Quit if not ok
        if (!CheckSocketValid())
            return FALSE;

        //Create our structure
        fd_set aDescriptor;
        FD_ZERO(&aDescriptor);

        //Add our socket
        FD_SET(GetHandle(),
               &aDescriptor);

        //And create the timeval
        timeval aTime;
        aTime.tv_sec=0;
        aTime.tv_usec=0;

        //And run the select
        int iRetVal;
        iRetVal=select(NULL,
                       &aDescriptor,
                       NULL,
                       NULL,
                       &aTime);

        //Check if we had an error
        if (iRetVal==GetErrorCode())
        {
            //Report it
            SetLastError("CanRead");

            //Exit
            return FALSE;
        }
        else
            //Check is our socket set
            return FD_ISSET(GetHandle(),
                            &aDescriptor);
    }
    ERROR_HANDLER_RETURN("CanRead",FALSE)
}

BOOL CSocket::CanWrite

(

)

const

Definition at line 767 of file Socket.cpp.

{
    try
    {
        //Quit if not ok
        if (!CheckSocketValid())
            return FALSE;

        //Create our structure
        fd_set aDescriptor;
        FD_ZERO(&aDescriptor);

        //Add our socket
        FD_SET(GetHandle(),
               &aDescriptor);

        //And create the timeval
        timeval aTime;
        aTime.tv_sec=0;
        aTime.tv_usec=0;

        //And run the select
        int iRetVal;
        iRetVal=select(NULL,
                       NULL,
                       &aDescriptor,
                       NULL,
                       &aTime);

        //Check if we had an error
        if (iRetVal==GetErrorCode())
        {
            //Report it
            SetLastError("CanWrite");

            //Exit
            return FALSE;
        }
        else
            //Check is our socket set
            return FD_ISSET(GetHandle(),
                            &aDescriptor);
    }
    ERROR_HANDLER_RETURN("CanWrite",FALSE)
}

BOOL CSocket::CheckSocketValid

(

)

const [protected]

Definition at line 387 of file Socket.cpp.

{
    try
    {
        //Check if socket is invalid
        if (!ValidSocket())
        {
            //Report it
            ReportError("CheckSocketValid","Operation made on non existant socket!");

            //Exit
            return FALSE;
        }

        //OK
        return TRUE;
    }
    ERROR_HANDLER_RETURN("CheckSocketValid",FALSE)
}

BOOL CSocket::Close

(

)

[virtual]

Reimplemented in CTCPSocket, CTCPSocketAsync, and CUDPSocketAsync.

Definition at line 407 of file Socket.cpp.

{
    try
    {
        //Close the socket
        //Quit if not ok
        if (!ValidSocket())
            return FALSE;

        //Close it
        if (closesocket(GetHandle())==GetErrorCode())
        {
            //Error in closing ?
            SetLastError("Close");

            //Exit
            return FALSE;
        }

        //Set the socket to invalid
        m_aSocket=INVALID_SOCKET;

        //Done
        return TRUE;
    }
    ERROR_HANDLER_RETURN("Close",FALSE)
}

BOOL CSocket::Create

(

int

iProtocol

)

Definition at line 98 of file Socket.cpp.

{
    //Close the socket if open
    if (ValidSocket())
        Close();

    try
    {
        //Are we overlapped
        if (!m_bOverlapped)
        {
            //Here we create the raw socket
            if (m_bRaw || iProtocol==IPPROTO_ICMP)
                m_aSocket=socket(AF_INET,
                                      SOCK_RAW,
                                      iProtocol);
            else
                if (iProtocol==IPPROTO_TCP)
                    m_aSocket=socket(AF_INET,
                                          SOCK_STREAM,
                                          iProtocol);
                else if (iProtocol==IPPROTO_UDP)
                    m_aSocket=socket(AF_INET,
                                          SOCK_DGRAM,
                                          iProtocol);
        }
        else
        {
            //Here we create the raw socket
            if (m_bRaw || iProtocol==IPPROTO_ICMP)
                m_aSocket=WSASocket(AF_INET,
                                         SOCK_RAW,
                                         iProtocol,
                                         NULL,
                                         NULL,
                                         WSA_FLAG_OVERLAPPED);
            else
                if (iProtocol==IPPROTO_TCP)
                    m_aSocket=WSASocket(AF_INET,
                                             SOCK_STREAM,
                                             iProtocol,
                                             NULL,
                                             NULL,
                                             WSA_FLAG_OVERLAPPED);
                else if (iProtocol==IPPROTO_UDP)
                    m_aSocket=WSASocket(AF_INET,
                                             SOCK_DGRAM,
                                             iProtocol,
                                             NULL,
                                             NULL,
                                             WSA_FLAG_OVERLAPPED);
        }

        //Check for socket validity
        if (m_aSocket==INVALID_SOCKET)
        {
            //Error
            SetLastError("Create");

            //Done
            return FALSE;
        }

        if (m_bRaw)
        {
            //Set that the application will send the IP header
            unsigned int iTrue=1;

            if(setsockopt(m_aSocket,
                          IPPROTO_IP,
                          IP_HDRINCL,
                          (char*)&iTrue,
                          sizeof(iTrue))==GetErrorCode())
            {
                //Check for options error
                SetLastError("Create");

                //Exit
                return FALSE;
            }
        }

        //Done
        return TRUE;
    }
    ERROR_HANDLER_RETURN("Create",FALSE)
}

SOCKET CSocket::Detach

(

)

[virtual]

Reimplemented in CTCPSocketAsync.

Definition at line 374 of file Socket.cpp.

{
    //Save the socket
    SOCKET aTmp;
    aTmp=m_aSocket;

    //Erase it
    m_aSocket=INVALID_SOCKET;

    //Return the original
    return aTmp;
}

std::string CErrorHandler::ErrorCodeToString

(

DWORD

dwErrorCode

)

[static, inherited]

Definition at line 218 of file ErrorHandler.cpp.

{
    try
    {
        //Try to look it in the errors
        if (!CErrorsRepository::GetInstance().GetErrorsMap().empty())
        {
            //Search
            CErrorsRepository::ErrorMap::const_iterator aIterator;
            aIterator=CErrorsRepository::GetInstance().GetErrorsMap().find(dwErrorCode);

            //Do we have it
            if (aIterator!=CErrorsRepository::GetInstance().GetErrorsMap().end())
                return aIterator->second;
        }

        //Get the error string
        LPVOID lpMsgBuf;
        FormatMessage(FORMAT_MESSAGE_ALLOCATE_BUFFER |
                      FORMAT_MESSAGE_FROM_SYSTEM |
                      FORMAT_MESSAGE_IGNORE_INSERTS,
                      NULL,
                      dwErrorCode,
                      MAKELANGID(LANG_NEUTRAL, SUBLANG_DEFAULT), // Default language
                      (LPTSTR) &lpMsgBuf,
                      0,
                      NULL);

        //Save it
        std::string sMessage;

        //Do we have the message?
        if (lpMsgBuf)
        {
            //Save it
            sMessage=(char*)lpMsgBuf;

            //Release the buffer
            LocalFree(lpMsgBuf);
        }
        else
            //Failed to find
            sMessage="No error description found!";

        //Done
        return sMessage;
    }
    catch (...)
    {
        return "Unknown";
    }
}

std::string CErrorHandler::FormatData	(	const std::string &	rClass,
		const std::string &	rMethod,
		const std::string &	rMsgOrError,
		bool	bError = true
	)			[static, inherited]

Definition at line 140 of file ErrorHandler.cpp.

{
    //Our message
    std::string sMsg;

    //Is it an error?
    if (bError)
        sMsg="*** Error *** ";
    else
        sMsg="###  Msg  ### ";

    //Add the data now
    sMsg+="in "+rClass;
    sMsg+=":"+rMethod;
    sMsg+=" - " + rMsgOrError;

    //Done
    return sMsg;
}

IP CSocket::GetBindAddress

(

)

const [virtual]

Reimplemented in CTCPSocketAsync.

Definition at line 902 of file Socket.cpp.

{
    return m_ulSourceAddress;
}

unsigned short CSocket::GetBindPort

(

)

const [virtual]

Reimplemented in CTCPSocketAsync.

Definition at line 337 of file Socket.cpp.

{
    try
    {
        //Quit if not ok
        if (!CheckSocketValid())
            return FALSE;

        //Create the local address
        sockaddr_in soSrc;

        //Buffer size
        int iSize;
        iSize=sizeof(soSrc);

        //Try to get it
        if (getsockname(GetHandle(),
                        (sockaddr*)&soSrc,
                        &iSize))
        {
            //Error
            SetLastError("Bind");

            //Exit
            return 0;
        }
        else
            return htons(soSrc.sin_port);
    }
    ERROR_HANDLER_RETURN("GetBindPort",0)
}

const std::string & CErrorHandler::GetClassName

(

)

const [protected, inherited]

Reimplemented in CSocketThreadManager.

Definition at line 567 of file ErrorHandler.cpp.

{
    return m_sClassName;
}

std::string CErrorHandler::GetCurrentDateTime

(

)

[static, inherited]

Definition at line 572 of file ErrorHandler.cpp.

{
    try
    {
        //Our string
        std::string sDate;

        //Our tmp buf
        char cTmp[128];

        //Get date
        _strdate(cTmp);
        sDate=cTmp;
        sDate+=' ';

        //Get time
        _strtime(cTmp);
        sDate+=cTmp;

        //Done
        return sDate;
    }
    ERROR_HANDLER_STATIC_RETURN(CErrorHandler_Class,"GetCurrentDateTime","")
}

int CSocketBase::GetErrorCode

(

)

[static, inherited]

Definition at line 368 of file SocketBase.cpp.

{
    return SOCKET_ERROR;
}

CGenericCriticalSection * CSocketBase::GetGlobalCriticalSection

(

)

[static, inherited]

Definition at line 363 of file SocketBase.cpp.

{
    return m_pCSection;
}

SOCKET CSocket::GetHandle

(

)

const

Definition at line 369 of file Socket.cpp.

{
    return m_aSocket;
}

int CSocketBase::GetLastError

(

)

const [inherited]

Definition at line 141 of file SocketBase.cpp.

{
    return m_iLastError;
}

unsigned long CSocketBase::GetNumberOfThreads

(

)

[static, inherited]

Definition at line 334 of file SocketBase.cpp.

{
    return m_ulNumberOfThreads;
}

long CSocket::GetPeerAddress

(

)

const

Definition at line 677 of file Socket.cpp.

{
    //Get the address we are connected to
    return m_aConnectedTo.sin_addr.S_un.S_addr;
}

unsigned short CSocket::GetPeerPort

(

)

const

Definition at line 716 of file Socket.cpp.

{
    return htons(m_aConnectedTo.sin_port);
}

unsigned char CSocket::GetProtocol

(

)

const

Definition at line 855 of file Socket.cpp.

{
    return m_ucProtocol;
}

IP CSocket::GetSourceAddress

(

)

const [protected]

Definition at line 850 of file Socket.cpp.

{
    return m_ulSourceAddress;
}

int CSocketBase::GetSystemLastError

(

)

[static, inherited]

Definition at line 358 of file SocketBase.cpp.

{
    return WSAGetLastError();
}

unsigned char CSocket::GetTTL

(

)

const [protected]

Definition at line 845 of file Socket.cpp.

{
    return m_ucTTL;
}

void CSocket::InitializeIP

(

)

[protected, virtual]

Definition at line 476 of file Socket.cpp.

{
    try
    {
        //Invalid the socket
        m_aSocket=INVALID_SOCKET;

        //More invalids
        m_ulSourceAddress=0;

        //Some defaults
        m_ucTTL=64;

        //We are not overlapped
        m_bOverlapped=FALSE;

        //Not connected
        memset(&m_aConnectedTo,
               0,
               sizeof(m_aConnectedTo));
    }
    ERROR_HANDLER("InitializeIP")
}

BOOL CSocketBase::InitializeSockets	(	BOOL	bMultiThreaded = TRUE,
		unsigned long	ulNumberOfThreads = 10
	)			[static, inherited]

Definition at line 146 of file SocketBase.cpp.

{
    //To avoid double initialize
    if (m_bInitialized)
    {
        //Report it
        ReportStaticError(CSocketBase_Class,"InitializeSockets","Already initialized!");

        //Exit
        return TRUE;
    }

    //Check that the number of threads are OK?
    if (ulNumberOfThreads>CLibConfig::GetInstance().GetMaxThreads())
    {
        //Report it
        ReportStaticError(CSocketBase_Class,"InitializeSockets","Too many threads!");

        //Exit
        return FALSE;
    }

    //Do we have threads at all
    if (bMultiThreaded &&
        !ulNumberOfThreads)
    {
        //Report it
        ReportStaticError(CSocketBase_Class,"InitializeSockets","Didn't receive any threads!");

        //Exit
        return FALSE;
    }

    try
    {
        //Initialize the sockets
        WORD wVersionRequested;
        wVersionRequested=MAKEWORD(2,2);

        //Try to initialize
        WSADATA wsaData;
        int iErr;
        iErr=WSAStartup(wVersionRequested,
                        &wsaData);

        //Did we succeed?
        if (iErr!=0)
            /* Tell the user that we could not find a usable */
            /* WinSock DLL.                                  */
            return FALSE;

        /* Confirm that the WinSock DLL supports 2.2.*/
        /* Note that if the DLL supports versions greater    */
        /* than 2.2 in addition to 2.2, it will still return */
        /* 2.2 in wVersion since that is the version we      */
        /* requested.                                        */

        if (LOBYTE(wsaData.wVersion)!=2 ||
            HIBYTE(wsaData.wVersion)!=2)
        {
            /* Tell the user that we could not find a usable */
            /* WinSock DLL.                                  */
            WSACleanup();

            //Exit
            return FALSE;
        }

        //Save the threading information
        m_bMultiThreaded=bMultiThreaded;
        m_ulNumberOfThreads=ulNumberOfThreads;

        //Create the critical section
        m_pCSection=COSManager::CreateCriticalSection();
        m_pCSectionDNS=COSManager::CreateCriticalSection();

        //And we are initialized
        m_bInitialized=TRUE;

        return TRUE;
    }
    ERROR_HANDLER_STATIC_RETURN(CSocketBase_Class,"InitializeSockets",FALSE)
}

BOOL CSocket::IsCreated

(

)

const

Definition at line 813 of file Socket.cpp.

{
    return ValidSocket();
}

BOOL CSocketBase::IsInitialized

(

)

[static, inherited]

Definition at line 339 of file SocketBase.cpp.

{
    return m_bInitialized;
}

BOOL CSocketBase::IsMultiThreaded

(

)

[static, inherited]

Definition at line 329 of file SocketBase.cpp.

{
    return m_bMultiThreaded;
}

BOOL CSocket::IsRaw

(

)

const

Definition at line 471 of file Socket.cpp.

{
    return m_bRaw;
}

std::string CSocketBase::LongToStdString

(

unsigned long

ulAddr

)

[static, inherited]

Definition at line 291 of file SocketBase.cpp.

{
    try
    {
        //First create the address
        in_addr addr;

        //Assign it
        addr.S_un.S_addr=ulAddr;

        //Enter the critical section
        CCriticalAutoRelease aRelease(m_pCSection);

        //Return the value
        return inet_ntoa(addr);
    }
    ERROR_HANDLER_STATIC_RETURN(CSocketBase_Class,"LongToStdString","0.0.0.0")
}

char FAR * CSocketBase::LongToString

(

unsigned long

ulAddr

)

[static, inherited]

Definition at line 310 of file SocketBase.cpp.

{
    try
    {
        //First create the address
        in_addr addr;

        //Assign it
        addr.S_un.S_addr=ulAddr;

        //Enter the critical section
        CCriticalAutoRelease aRelease(m_pCSection);

        //Return the value
        return inet_ntoa(addr);
    }
    ERROR_HANDLER_STATIC_RETURN(CSocketBase_Class,"LongToString",NULL)
}

void CSocketBase::NotifyShutdown

(

)

[protected, virtual, inherited]

Definition at line 273 of file SocketBase.cpp.

{
}

bool CSocket::operator<

(

const CSocket &

rSocket

)

const

Definition at line 892 of file Socket.cpp.

{
    return m_aSocket<rSocket.m_aSocket;
}

bool CSocket::operator==

(

const CSocket &

rSocket

)

const

Definition at line 887 of file Socket.cpp.

{
    return m_aSocket==rSocket.m_aSocket;
}

int CSocket::Peek	(	char *	pBuffer,
		unsigned long	ulBufferLength
	)			[virtual]

Reimplemented in CTCPSocketAsync.

Definition at line 665 of file Socket.cpp.

{
    try
    {
        return LocalReceive(pBuffer,
                            ulBufferLength,
                            TRUE);
    }
    ERROR_HANDLER_RETURN("Peek",GetErrorCode())
}

int CSocket::Receive	(	char *	pBuffer,
		unsigned long	ulBufferLength
	)			[virtual]

Reimplemented in CTCPSocketAsync, and CUDPSocket.

Definition at line 653 of file Socket.cpp.

{
    try
    {
        return LocalReceive(pBuffer,
                            ulBufferLength,
                            FALSE);
    }
    ERROR_HANDLER_RETURN("Receive",GetErrorCode())
}

int CSocket::ReceiveFrom	(	char *	pBuffer,
		unsigned long	ulBufferLength,
		IP &	rIP,
		unsigned short &	rSourcePort
	)			[protected, virtual]

Definition at line 514 of file Socket.cpp.

{
    try
    {
        if (!ValidSocket() ||
            !pBuffer ||
            !ulBufferLength)
            return GetErrorCode();

        //Receive data
        int iResult;

        //Receive
        if (m_ucProtocol!=IPPROTO_TCP)
        {
            //Get the remote address
            sockaddr saConnected;

            int iTmp;
            iTmp=sizeof(saConnected);

            //Accept it
            iResult=recvfrom(GetHandle(),
                             pBuffer,
                             ulBufferLength,
                             NULL,
                             &saConnected,
                             &iTmp);

            //If OK set it
            if (iResult!=GetErrorCode())
            {
                //Address
                rIP=((sockaddr_in*)&saConnected)->sin_addr.S_un.S_addr;

                //Port
                rSourcePort=htons(((sockaddr_in*)&saConnected)->sin_port);

                //Done
                return iResult;
            }
            else
            {
                //Error
                SetLastError("Receive");

                //Reset the data
                rIP=0;
                rSourcePort=0;

                //Done
                return iResult;
            }
        }
        else
        {
            //Report it
            ReportError("Receive","Can't run on TCP socket!");

            //Exit
            return GetErrorCode();
        }
    }
    ERROR_HANDLER_RETURN("Receive",GetErrorCode())
}

void CErrorHandler::RegisterError	(	DWORD	dwErrorCode,
		const std::string &	rDescription
	)			[static, inherited]

Definition at line 597 of file ErrorHandler.cpp.

{
    try
    {
        //Add the error
        CErrorsRepository::GetInstance().GetErrorsMap().insert(CErrorsRepository::ErrorMap::value_type(dwErrorCode,rDescription));
    }
    ERROR_HANDLER_STATIC(CErrorHandler_Class,"RegisterError")
}

void CSocketBase::RegisterShutdown

(

CSocketBase *

pBase

)

[protected, inherited]

Definition at line 277 of file SocketBase.cpp.

{
    try
    {
        //Check if we already have a class
        if (m_pShutdownClass)
            delete m_pShutdownClass;

        //Take it
        m_pShutdownClass=pBase;
    }
    ERROR_HANDLER("RegisterShutdown")
}

void CErrorHandler::ReportError	(	const std::string &	rMethod,
		const std::string &	rMessage,
		int	iErrorCode
	)			const [protected, virtual, inherited]

Definition at line 271 of file ErrorHandler.cpp.

{
    if (!GetLog())
        return;

    try
    {
        //Convert the error code
        char aTmp[11];
        sprintf(aTmp,"%d",iErrorCode);

        //Get the string for it
        std::string sError;
        sError=rMessage;
        sError+=", and Socket error: ";
        sError+=aTmp;
        sError+=", ";
        sError+=ErrorCodeToString(iErrorCode);

        //Report to the log
        WriteError(m_sClassName,
                   rMethod,
                   sError);
    }
    ERROR_UNKNOWN("ReportError")
}

void CErrorHandler::ReportError	(	const std::string &	rMethod,
		int	iErrorCode
	)			const [protected, virtual, inherited]

Definition at line 300 of file ErrorHandler.cpp.

{
    if (!GetLog())
        return;

    try
    {
        //Convert the error code
        char aTmp[11];
        sprintf(aTmp,"%d",iErrorCode);

        //Get the string for it
        std::string sError;
        sError="Socket error: ";
        sError+=aTmp;
        sError+=", ";
        sError+=ErrorCodeToString(iErrorCode);

        //Report to the log
        WriteError(m_sClassName,
                   rMethod,
                   sError);
    }
    ERROR_UNKNOWN("ReportError")
}

void CErrorHandler::ReportError	(	const std::string &	rMethod,
		const std::string &	rMessage,
		const std::string &	rAdditionalData
	)			const [protected, virtual, inherited]

Definition at line 416 of file ErrorHandler.cpp.

{
    if (!GetLog())
        return;

    try
    {
        //Create the new message
        std::string sNewMessage(rMessage);
        sNewMessage+=", Additional data: ";
        sNewMessage+=rAdditionalData;

        //Report to the log
        WriteError(m_sClassName,
                   rMethod,
                   sNewMessage);
    }
    ERROR_UNKNOWN("ReportError")
}

void CErrorHandler::ReportError	(	const std::string &	rMethod,
		const std::string &	rMessage,
		DWORD	dwAdditionalData
	)			const [protected, virtual, inherited]

Definition at line 438 of file ErrorHandler.cpp.

{
    if (!GetLog())
        return;

    try
    {
        //Convert the number
        char aTmp[11];
        ltoa(dwAdditionalData,aTmp,10);

        //Create the new message
        std::string sNewMessage(rMessage);
        sNewMessage+=", Additional data: ";
        sNewMessage+=aTmp;

        //Report to the log
        WriteError(m_sClassName,
                   rMethod,
                   sNewMessage);
    }
    ERROR_UNKNOWN("ReportError")
}

void CErrorHandler::ReportError	(	const std::string &	rMethod,
		const std::string &	rMessage
	)			const [protected, virtual, inherited]

Definition at line 327 of file ErrorHandler.cpp.

{
    if (!GetLog())
        return;

    try
    {
        //Report to the log
        WriteError(m_sClassName,
                   rMethod,
                   rMessage);
    }
    ERROR_UNKNOWN("ReportError")
}

void CErrorHandler::ReportError

(

const std::string &

rMethod

)

const [protected, virtual, inherited]

Definition at line 470 of file ErrorHandler.cpp.

{
    if (!GetLog())
        return;

    try
    {
        //Get the last error
        DWORD dwLastError;
        dwLastError=GetLastError();

        //Report the error
        WriteError(m_sClassName,
                   rMethod,
                   ErrorCodeToString(dwLastError));
    }
    ERROR_UNKNOWN("ReportError")
}

void CErrorHandler::ReportErrorOS	(	const std::string &	rMethod,
		const std::string &	rMessage
	)			const [protected, virtual, inherited]

Definition at line 378 of file ErrorHandler.cpp.

{
    if (!GetLog())
        return;

    try
    {
        //Get the last error
        DWORD dwLastError;
        dwLastError=GetLastError();

        //Format the message
        std::string sMessage;
        sMessage=rMessage;
        sMessage+=", with error code: ";

        //Convert the error code
        char aTmp[11];
        itoa(dwLastError,aTmp,10);

        //Add it again
        sMessage+=aTmp;
        sMessage+=" ";
        sMessage+=ErrorCodeToString(dwLastError);

        //Get the log
        CErrorLog* pLog;
        pLog=GetLog();

        //Report to the log
        WriteError(m_sClassName,
                   rMethod,
                   sMessage);
    }
    ERROR_UNKNOWN("ReportErrorOS")
}

void CErrorHandler::ReportStaticError	(	const std::string &	rClass,
		const std::string &	rMethod,
		const std::string &	rMessage,
		DWORD	dwAdditionalData
	)			[static, protected, inherited]

Definition at line 540 of file ErrorHandler.cpp.

{
    if (!m_pLog)
        return;

    try
    {
        //Convert the number
        char aTmp[11];
        ltoa(dwAdditionalData,aTmp,10);

        //Create the new message
        std::string sNewMessage(rMessage);
        sNewMessage+=", Additional data: ";
        sNewMessage+=aTmp;

        //Report to the log
        WriteStaticError(rClass,
                         rMethod,
                         sNewMessage);
    }
    ERROR_UNKNOWN("ReportStaticError")
}

void CErrorHandler::ReportStaticError	(	const std::string &	rClass,
		const std::string &	rMethod,
		const std::string &	rMessage
	)			[static, protected, inherited]

Definition at line 523 of file ErrorHandler.cpp.

{
    if (!m_pLog)
        return;

    try
    {
        //Report to the log
        WriteStaticError(rClass,
                         rMethod,
                         rMessage);
    }
    ERROR_UNKNOWN("ReportStaticError")
}

void CErrorHandler::ReportStaticError	(	const std::string &	rClass,
		const std::string &	rMethod
	)			[static, protected, inherited]

Definition at line 503 of file ErrorHandler.cpp.

{
    if (!m_pLog)
        return;

    try
    {
        //Get the last error
        DWORD dwLastError;
        dwLastError=GetLastError();

        //Report the error
        WriteStaticError(rClass,
                          rMethod,
                          ErrorCodeToString(dwLastError));
    }
    ERROR_UNKNOWN("ReportStaticError")
}

void CErrorHandler::ReportStaticErrorOS	(	const std::string &	rClass,
		const std::string &	rMethod,
		const std::string &	rMessage
	)			[static, protected, inherited]

Definition at line 343 of file ErrorHandler.cpp.

{
    if (!m_pLog)
        return;

    try
    {
        //Get the last error
        DWORD dwLastError;
        dwLastError=GetLastError();

        //Format the message
        std::string sMessage;
        sMessage=rMessage;
        sMessage+=", with error code: ";

        //Convert the error code
        char aTmp[11];
        itoa(dwLastError,aTmp,10);

        //Add it again
        sMessage+=aTmp;
        sMessage+=" ";
        sMessage+=ErrorCodeToString(dwLastError);

        //Report to the log
        WriteStaticError(rClass,
                         rMethod,
                         sMessage);
    }
    ERROR_UNKNOWN("ReportStaticError")
}

unsigned long CSocketBase::ResolveDNS

(

const std::string &

rAddress

)

[static, inherited]

Definition at line 431 of file SocketBase.cpp.

{
    try
    {
        //Resolve the DNS
        sockaddr_in aAddr;
        aAddr=InternalResolveDNS(rAddress.c_str());

        //Check if valid
        if (aAddr.sin_addr.S_un.S_addr==0)
            //Error
            return 0;
        else
            return aAddr.sin_addr.S_un.S_addr;
    }
    ERROR_HANDLER_STATIC_RETURN(CSocketBase_Class,"ResolveDNS",0)
}

int CSocket::Send	(	const std::string &	rDestinationAddress,
		const char *	pBuffer,
		unsigned long	ulBufferLength,
		unsigned short	usDestinationPort = 0
	)			[virtual]

Definition at line 245 of file Socket.cpp.

{
    try
    {
        //Quit if not ok
        if (!CheckSocketValid())
            return GetErrorCode();

        return Send(inet_addr(rDestinationAddress.c_str()),
                    pBuffer,
                    ulBufferLength,
                    usDestinationPort);
    }
    ERROR_HANDLER_RETURN("Send",GetErrorCode())
}

int CSocket::Send	(	IP	aDestinationAddress,
		const char *	pBuffer,
		unsigned long	ulBufferLength,
		unsigned short	usDestinationPort = 0
	)			[virtual]

Definition at line 191 of file Socket.cpp.

{
    try
    {
        //Quit if not ok
        if (!CheckSocketValid())
            return GetErrorCode();

        //Is it a valid size
        if (ulBufferLength &&
            !pBuffer)
            return GetErrorCode();

        //Define the target address
        sockaddr_in aTargetAddress;
        memset(&aTargetAddress,
               0,
               sizeof(aTargetAddress));

        aTargetAddress.sin_family=AF_INET;
        aTargetAddress.sin_addr.s_addr=aDestinationAddress;
        aTargetAddress.sin_port=htons(usDestinationPort);

        //packet send status ?
        int iResult;

        //Set to no error
        iResult=!GetErrorCode();

        //Check if we had an error
        if (iResult!=GetErrorCode())
            //Use regular send !!!
            iResult=sendto(GetHandle(),
                           (const char*)pBuffer,
                           ulBufferLength,
                           0,
                           (sockaddr*)&aTargetAddress,
                           sizeof(aTargetAddress));

        //Is all OK?
        if (iResult==GetErrorCode() &&
            GetSystemLastError()!=WSAEWOULDBLOCK)
            //Set the error
            SetLastError("Send");

        //Done
        return iResult;
    }
    ERROR_HANDLER_RETURN("Send",GetErrorCode())
}

BOOL CSocket::SetBroadcast

(

BOOL

bBroadcast

)

Definition at line 818 of file Socket.cpp.

{
    try
    {
        //Quit if not ok
        if (!CheckSocketValid())
            return FALSE;

        //Set broadcast option
        if(setsockopt(GetHandle(),
                      SOL_SOCKET,
                      SO_BROADCAST,
                      (char*)&bBroadcast,
                      sizeof(bBroadcast))==GetErrorCode())
        {
            //Check for options error
            SetLastError("SetBroadcast");

            //Exit
            return FALSE;
        }

        return TRUE;
    }
    ERROR_HANDLER_RETURN("SetBroadcast",FALSE)
}

void CSocket::SetConnectedTo

(

const sockaddr_in &

rAddress

)

[protected]

Definition at line 897 of file Socket.cpp.

{
    m_aConnectedTo=rAddress;
}

void CSocketBase::SetLastError	(	const std::string &	rMethod,
		int	iErrorCode
	)			const [protected, inherited]

Definition at line 124 of file SocketBase.cpp.

{
    try
    {
        //First set the error
        m_iLastError=iErrorCode;

        //Check if there is an error
        if (m_iLastError)
            ReportError(rMethod,
                        "Through SetLastError",
                        m_iLastError);
    }
    ERROR_HANDLER("SetLastError")
}

void CSocketBase::SetLastError

(

const std::string &

rMethod

)

const [protected, inherited]

Definition at line 104 of file SocketBase.cpp.

{
    try
    {
#ifdef WIN32
        //First set the error
        m_iLastError=WSAGetLastError();
#else
        m_iLastError=errno();
#endif

        //Check if there is an error
        if (m_iLastError)
            ReportError(rMethod,
                        "Through SetLastError",
                        m_iLastError);
    }
    ERROR_HANDLER("SetLastError")
}

void CErrorHandler::SetLocalLog

(

CErrorLog *

pLog

)

[inherited]

Definition at line 498 of file ErrorHandler.cpp.

{
    m_pLocalLog=pLog;
}

void CErrorHandler::SetLog

(

CErrorLog *

pLog

)

[static, inherited]

Definition at line 464 of file ErrorHandler.cpp.

{
    //Save the new log
    m_pLog=pLog;
}

void CErrorHandler::SetName

(

const std::string &

rName

)

const [protected, inherited]

Definition at line 134 of file ErrorHandler.cpp.

{
    //Save the class name
    m_sClassName=rName;
}

void CSocket::SetProtocol

(

unsigned char

iProtocol

)

Definition at line 186 of file Socket.cpp.

{
    m_ucProtocol=ucProtocol;
}

BOOL CSocket::SetReceiveTimeout

(

unsigned long

ulMS

)

Definition at line 860 of file Socket.cpp.

{
    try
    {
        //Quit if not ok
        if (!CheckSocketValid())
            return FALSE;

        //Set it
        if(setsockopt(GetHandle(),
                      SOL_SOCKET,
                      SO_RCVTIMEO,
                      (char*)&ulMS,
                      sizeof(ulMS))==GetErrorCode())
        {
            //Check for options error
            SetLastError("SetReceiveTimeout");

            //Exit
            return FALSE;
        }
        else
            return TRUE;
    }
    ERROR_HANDLER_RETURN("SetReceiveTimeout",FALSE)
}

void CSocket::SetSourceAddress

(

const std::string &

rSourceAddress

)

[virtual]

Definition at line 440 of file Socket.cpp.

{
    try
    {
        //Set the source address, in case we want to spoof it
        if (rSourceAddress.empty())
            m_ulSourceAddress=0;
        else
            m_ulSourceAddress=inet_addr(rSourceAddress.c_str());
    }
    ERROR_HANDLER("SetSourceAddress")
}

void CSocket::SetSourceAddress

(

IP

aSourceAddress

)

[virtual]

Definition at line 435 of file Socket.cpp.

{
    m_ulSourceAddress=aSourceAddress;
}

void CSocket::SetTTL

(

unsigned char

ucTTL

)

Definition at line 453 of file Socket.cpp.

{
    try
    {
        //Quit if not ok
        if (!CheckSocketValid())
            return;

        if(setsockopt(GetHandle(),
                      IPPROTO_IP,
                      IP_TTL,
                      (const char*)&ucTTL,
                      sizeof(ucTTL)))
            SetLastError("SetTTL");
    }
    ERROR_HANDLER("SetTTL")
}

BOOL CSocket::Shutdown

(

SocketShutdown

eHow

)

Definition at line 683 of file Socket.cpp.

{
    if (!CheckSocketValid())
        return FALSE;

    try
    {
        int iHow;

        //Convert the how to a real flag
        if (eHow==ssReceive)
            iHow=SD_RECEIVE;
        else if (eHow==ssSend)
            iHow=SD_SEND;
        else
            iHow=SD_BOTH;

        //Do it
        if (shutdown(GetHandle(),iHow))
        {
            //Report it
            SetLastError("Shutdown");

            //Exit
            return FALSE;
        }

        //Done
        return TRUE;
    }
    ERROR_HANDLER_RETURN("Shutdown",FALSE)
}

BOOL CSocketBase::ShutdownSockets

(

)

[static, inherited]

Definition at line 231 of file SocketBase.cpp.

{
    //Only if initialized
    if (!m_bInitialized)
        return TRUE;

    try
    {
        //Delete the CS
        delete m_pCSection;
        m_pCSection=NULL;

        //Delete the DNS CS
        delete m_pCSectionDNS;
        m_pCSectionDNS=NULL;

        //Clear the DNS map
        m_aDNSMap.clear();

        //Notify shutdown class
        if (m_pShutdownClass)
        {
            //Notify we are shuting down
            m_pShutdownClass->NotifyShutdown();

            //Delete it
            delete m_pShutdownClass;
            m_pShutdownClass=NULL;
        }

        //Not initialized anymore
        m_bInitialized=FALSE;

        if (WSACleanup()==GetErrorCode())
            return FALSE;

        //Done
        return TRUE;
    }
    ERROR_HANDLER_STATIC_RETURN(CSocketBase_Class,"ShutdownSockets",FALSE)
}

unsigned long CSocketBase::StringToLong

(

const std::string &

rAddress

)

[static, inherited]

Definition at line 344 of file SocketBase.cpp.

{
    //Try to convert it
    unsigned long ulAddress;
    ulAddress=inet_addr(rAddress.c_str());

    //Is it valid
    if (ulAddress!=INADDR_NONE)
        return ulAddress;
    else
        //Try to resolve it
        return ResolveDNS(rAddress);
}

BOOL CSocketBase::ValidAddress

(

const std::string &

rAddress

)

[static, inherited]

Definition at line 373 of file SocketBase.cpp.

{
    try
    {
        return inet_addr(rAddress.c_str())!=INADDR_NONE;
    }
    ERROR_HANDLER_STATIC_RETURN(CSocketBase_Class,"ValidAddress",FALSE)
}

BOOL CSocket::ValidSocket

(

)

const [protected]

Definition at line 264 of file Socket.cpp.

{
    return m_aSocket!=INVALID_SOCKET;
}

void CErrorHandler::WriteError	(	const std::string &	rClass,
		const std::string &	rMethod,
		const std::string &	rError
	)			const [inherited]

Definition at line 163 of file ErrorHandler.cpp.

{
    //Do we have a log?
    if (!GetLog())
        return;

    //Format the msg
    std::string sError;
    sError=FormatData(rClass,
                      rMethod,
                      rError);

    //Write it
    GetLog()->WriteError(sError);
}

void CErrorHandler::WriteMessage	(	const std::string &	rClass,
		const std::string &	rMethod,
		const std::string &	rMessage
	)			const [inherited]

Definition at line 199 of file ErrorHandler.cpp.

{
    //Do we have a log?
    if (!GetLog())
        return;

    //Format the msg
    std::string sMsg;
    sMsg=FormatData(rClass,
                    rMethod,
                    rMessage,
                    true);

    //Write it
    GetLog()->WriteMessage(sMsg);
}

void CErrorHandler::WriteStaticError	(	const std::string &	rClass,
		const std::string &	rMethod,
		const std::string &	rError
	)			[static, inherited]

Definition at line 181 of file ErrorHandler.cpp.

{
    //Do we have a log?
    if (!m_pLog)
        return;

    //Format the msg
    std::string sError;
    sError=FormatData(rClass,
                      rMethod,
                      rError);

    //Write it
    m_pLog->WriteError(sError);
}

---

Friends And Related Function Documentation

friend class CIPCrafter [friend]

Definition at line 59 of file Socket.h.

---

Member Data Documentation

CGenericCriticalSection * CSocketBase::m_pCSection = NULL [static, protected, inherited]

Definition at line 122 of file SocketBase.h.

---

The documentation for this class was generated from the following files:

• Socket.h
• Socket.cpp
