CIPCrafter Class Reference

#include <IPCrafter.h>

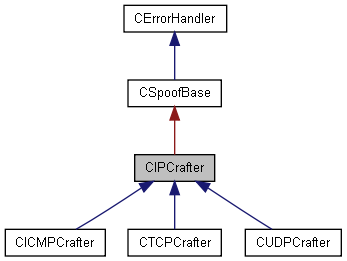

Inheritance diagram for CIPCrafter:

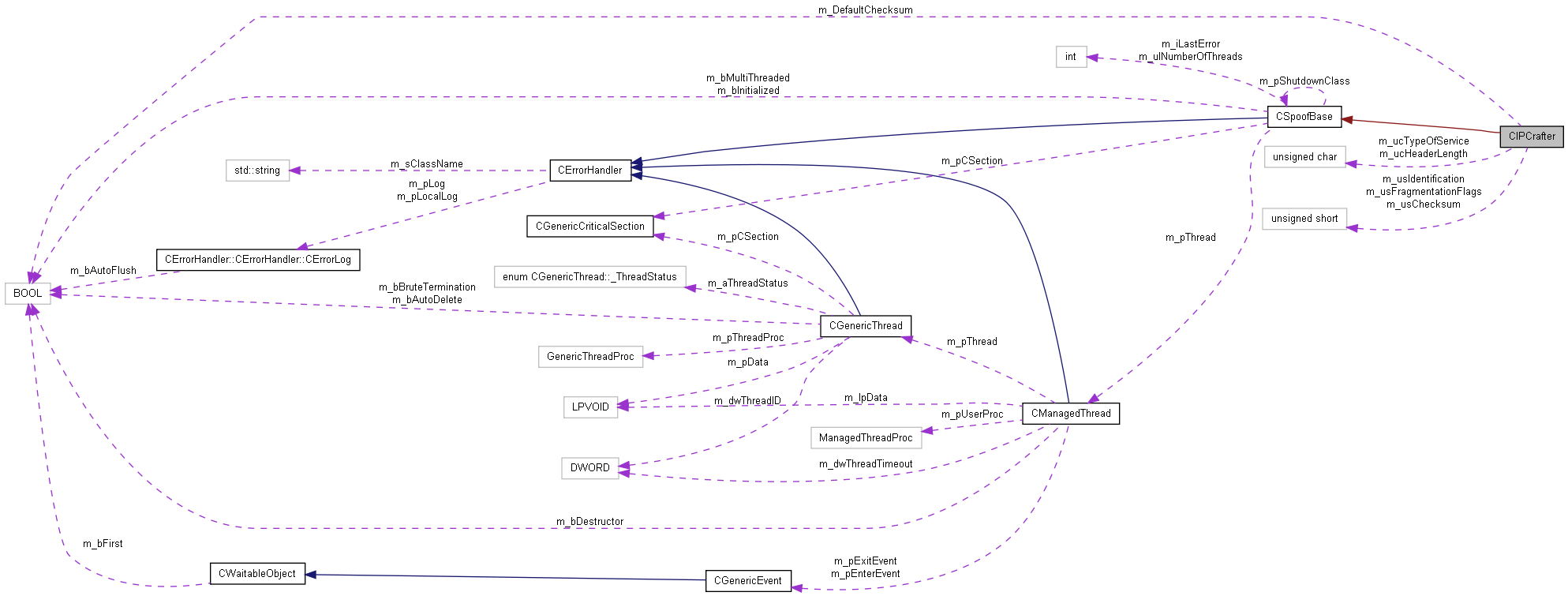

Collaboration diagram for CIPCrafter:


Public Member Functions
char *	GetCraftedPacket (const CSpoofSocket pSocket, unsigned long ulDestinationAddress, const char pBuffer, unsigned short usBufferSize, unsigned short &usTotalSize) const
void	SetUseDefaultChecksum (BOOL bDefault)
void	SetChecksum (unsigned short usChecksum)
void	SetDefault ()
void	SetTypeOfService (unsigned char ucTypeOfService)
void	SetHeaderLength (unsigned char ucHeaderLength)
void	SetIdentification (unsigned short usIdentification)
void	SetFragmentationFlags (unsigned short usFragmentationFlags)
	CIPCrafter ()
virtual	~CIPCrafter ()
Protected Member Functions
LPIpHeader	ConstructCraftedIPHeader (unsigned char ucProtocol, unsigned short usFragmentationFlags, unsigned char ucTTL, unsigned short usIdentification, unsigned char ucHeaderLength) const
Protected Attributes
unsigned short	m_usFragmentationFlags
unsigned short	m_usIdentification
unsigned char	m_ucHeaderLength
unsigned char	m_ucTypeOfService
unsigned short	m_usChecksum
BOOL	m_DefaultChecksum
Private Types
enum	_LogPriority { lpDebug, lpMessage, lpCritical, lpError }
typedef enum CErrorHandler::_LogPriority	LogPriority
Private Member Functions
int	GetSystemLastError () const
int	GetLastError () const
virtual void	NotifyShutdown ()
void	RegisterShutdown (CSpoofBase *pBase)
void	SetLastError (const std::string &rMethod) const
void	SetLastError (const std::string &, int iErrorCode) const
void	SetLocalLog (CErrorLog *pLog)
const std::string &	GetClassName () const
void	WriteMessage (const std::string &rMethod, const std::string &rMessage, LogPriority aPriority=lpMessage)
void	WriteMessage (const std::string &rMethod, const std::string &rMessage, DWORD dwAdditionalData, LogPriority aPriority=lpMessage)
virtual void	ReportError (const std::string &rMethod) const
virtual void	ReportError (const std::string &rMethod, const std::string &rMessage) const
virtual void	ReportError (const std::string &rMethod, const std::string &rMessage, DWORD dwAdditionalData) const
virtual void	ReportError (const std::string &rMethod, int iErrorCode) const
virtual void	ReportError (const std::string &rMethod, const std::string &rMessage, int iErrorCode) const
virtual void	ReportErrorOS (const std::string &rMethod, const std::string &rMessage) const
void	SetName (const std::string &rName) const
Static Private Member Functions
static int	GetErrorCode ()
static BOOL	IsInitialized ()
static unsigned long	StringToLong (const std::string &rAddress)
static char FAR *	LongToString (unsigned long ulAddr)
static std::string	LongToStdString (unsigned long ulAddr)
static BOOL	InitializeSockets (BOOL bMultiThreaded=TRUE, unsigned long ulNumberOfThreads=10)
static BOOL	InitializeSocketsNoMap (BOOL bMultiThreaded=TRUE, unsigned long ulNumberOfThreads=10)
static BOOL	ShutdownSockets ()
static unsigned long	GetNumberOfThreads ()
static BOOL	IsMultiThreaded ()
static CGenericCriticalSection *	GetGlobalCriticalSection ()
static std::string	GetCurrentDateTime ()
static std::string	ErrorCodeToString (DWORD dwErrorCode)
static void	SetLog (CErrorLog *pLog)
static void	WriteStaticMessage (const std::string &rClass, const std::string &rMethod, const std::string &rMessage, LogPriority aPriority=lpMessage)
static void	WriteStaticMessage (const std::string &rClass, const std::string &rMethod, const std::string &rMessage, DWORD dwAdditionalData, LogPriority aPriority=lpMessage)
static void	ReportStaticError (const std::string &rClass, const std::string &rMethod)
static void	ReportStaticError (const std::string &rClass, const std::string &rMethod, const std::string &rMessage)
static void	ReportStaticError (const std::string &rClass, const std::string &rMethod, const std::string &rMessage, DWORD dwAdditionalData)
Static Private Attributes
static CGenericCriticalSection *	m_pCSection = NULL

Detailed Description

Definition at line 52 of file IPCrafter.h.

Constructor & Destructor Documentation

CIPCrafter::CIPCrafter ( )

Definition at line 53 of file IPCrafter.cpp.

00053                        : CSpoofBase()
00054 {
00055     try
00056     {
00057         //Set our name
00058         SetName(CIPCrafter_Class);
00059
00060         //Set the default data
00061         SetDefault();
00062     }
00063     ERROR_HANDLER("CIPCrafter")
00064 }

CIPCrafter::~CIPCrafter ( ) [virtual]

Definition at line 66 of file IPCrafter.cpp.

00067 {
00068 }

Member Function Documentation

LPIpHeader CIPCrafter::ConstructCraftedIPHeader	(	unsigned char	ucProtocol,
		unsigned short	usFragmentationFlags,
		unsigned char	ucTTL,
		unsigned short	usIdentification,
		unsigned char	ucHeaderLength
	)			const `[protected]`

Definition at line 115 of file IPCrafter.cpp.

00120 {
00121     try
00122     {
00123         //Get the original header
00124         LPIpHeader lpHead;
00125
00126         //Check what header length to pass
00127         unsigned char ucLength;
00128
00129         if (m_ucHeaderLength==IPCRAFTER_DEFAULT_HEADER_SIZE)
00130             ucLength=ucHeaderLength;
00131         else
00132             ucLength=m_ucHeaderLength;
00133
00134         //Get the header
00135         lpHead=CSpoofSocket::ConstructStaticIPHeader(ucProtocol,
00136                                                      m_usFragmentationFlags,
00137                                                      ucTTL,
00138                                                      m_usIdentification,
00139                                                      ucLength);
00140
00141         //Check we have it
00142         if (!lpHead)
00143             return NULL;
00144
00145         //Set the type of service
00146         //Precedence
00147         lpHead->ucTypeOfService=m_ucTypeOfService;
00148
00149         //Done
00150         return lpHead;
00151     }
00152     ERROR_HANDLER_RETURN("ConstructCraftedIPHeader",NULL)
00153 }

char * CIPCrafter::GetCraftedPacket	(	const CSpoofSocket *	pSocket,
		unsigned long	ulDestinationAddress,
		const char *	pBuffer,
		unsigned short	usBufferSize,
		unsigned short &	usTotalSize
	)			const

Definition at line 155 of file IPCrafter.cpp.

00160 {
00161     try
00162     {
00163         //Check if the length is too big
00164         if (IpHeaderLength+(long)usBufferSize>65535)
00165         {
00166             //Report it
00167             ReportError("GetCraftedPacket","Packet can't be greater then 65k!");
00168
00169             //Exit
00170             return NULL;
00171         }
00172
00173         //Header length
00174         unsigned char ucHeaderLength=IpHeaderLength;
00175
00176         if (pSocket->HasOptions())
00177             ucHeaderLength+=pSocket->GetOptions()->GetBufferLength();
00178
00179         //First construct the packet
00180         LPIpHeader lpHead=pSocket->ConstructIPHeader(pSocket->GetProtocol(),
00181                                                      IpFragFlag_DONT_FRAG,
00182                                                      pSocket->GetTTL(),
00183                                                      (unsigned short)GetCurrentProcessId(),
00184                                                      ucHeaderLength);
00185
00186         //Set the address
00187         pSocket->SetIPHeaderAddress(lpHead,
00188                                     pSocket->GetSourceAddress(),
00189                                     ulDestinationAddress);
00190
00191         //Now add some more options
00192         unsigned short usTotalLength;
00193         usTotalLength=ucHeaderLength+usBufferSize;
00194
00195         //Set the header
00196         lpHead->usTotalLength=htons(usTotalLength);
00197
00198         //Need to construct a new packet
00199         char* pNewBuf;
00200         pNewBuf=new char[usTotalLength];
00201
00202         //Copy two buffers
00203         memcpy(pNewBuf,
00204                lpHead,
00205                IpHeaderLength);
00206
00207         //Do we need to copy options ?
00208         if (pSocket->HasOptions())
00209             memcpy(pNewBuf+IpHeaderLength,
00210                    pSocket->GetOptions()->GetBuffer(),
00211                    pSocket->GetOptions()->GetBufferLength());
00212
00213         //Only if not null
00214         if (pBuffer)
00215             memcpy(pNewBuf+ucHeaderLength,
00216                    pBuffer,
00217                    usBufferSize);
00218
00219         //Calculate the checksum
00220         lpHead->usChecksum=pSocket->CalculateChecksum((unsigned short*)pNewBuf,
00221                                                       ucHeaderLength);
00222
00223         //Alert everyone this is the final header
00224         pSocket->FinalIPHeader(lpHead);
00225
00226         //Recopy the ip
00227         memcpy(pNewBuf,
00228                lpHead,
00229                IpHeaderLength);
00230
00231         //Set the total size
00232         usTotalSize=usTotalLength;
00233
00234         //Return to the user
00235         return pNewBuf;
00236     }
00237     ERROR_HANDLER_RETURN("GetCraftedPacket",NULL)
00238 }

void CIPCrafter::SetChecksum ( unsigned short usChecksum )

Definition at line 105 of file IPCrafter.cpp.

00106 {
00107     m_usChecksum=usChecksum;
00108 }

void CIPCrafter::SetDefault ( )

Definition at line 90 of file IPCrafter.cpp.

00091 {
00092     try
00093     {
00094         m_usFragmentationFlags=IpFragFlag_DONT_FRAG;
00095         m_usIdentification=(unsigned short)GetCurrentProcessId();
00096         m_ucHeaderLength=IPCRAFTER_DEFAULT_HEADER_SIZE; //Default size
00097         m_ucTypeOfService=IpService_ROUTINE;
00098
00099         //Default checksum used
00100         m_DefaultChecksum=TRUE;
00101     }
00102     ERROR_HANDLER("SetDefault")
00103 }

void CIPCrafter::SetFragmentationFlags ( unsigned short usFragmentationFlags )

Definition at line 70 of file IPCrafter.cpp.

00071 {
00072     m_usFragmentationFlags=usFragmentationFlags;
00073 }

void CIPCrafter::SetHeaderLength ( unsigned char ucHeaderLength )

Definition at line 80 of file IPCrafter.cpp.

00081 {
00082     m_ucHeaderLength=ucHeaderLength;
00083 }

void CIPCrafter::SetIdentification ( unsigned short usIdentification )

Definition at line 75 of file IPCrafter.cpp.

00076 {
00077     m_usIdentification=usIdentification;
00078 }

void CIPCrafter::SetTypeOfService ( unsigned char ucTypeOfService )

Definition at line 85 of file IPCrafter.cpp.

00086 {
00087     m_ucTypeOfService=ucTypeOfService;
00088 }

void CIPCrafter::SetUseDefaultChecksum ( BOOL bDefault )

Definition at line 110 of file IPCrafter.cpp.

00111 {
00112     m_DefaultChecksum=bDefault;
00113 }

Member Data Documentation

BOOL CIPCrafter::m_DefaultChecksum [protected]

Definition at line 102 of file IPCrafter.h.

unsigned char CIPCrafter::m_ucHeaderLength [protected]

Definition at line 97 of file IPCrafter.h.

unsigned char CIPCrafter::m_ucTypeOfService [protected]

Definition at line 98 of file IPCrafter.h.

unsigned short CIPCrafter::m_usChecksum [protected]

Definition at line 101 of file IPCrafter.h.

unsigned short CIPCrafter::m_usFragmentationFlags [protected]

Definition at line 95 of file IPCrafter.h.

unsigned short CIPCrafter::m_usIdentification [protected]

Definition at line 96 of file IPCrafter.h.

The documentation for this class was generated from the following files:
