CTCPPortScannerStealth Class Reference

#include <TCPPortScannerStealth.h>

Inheritance diagram for CTCPPortScannerStealth:

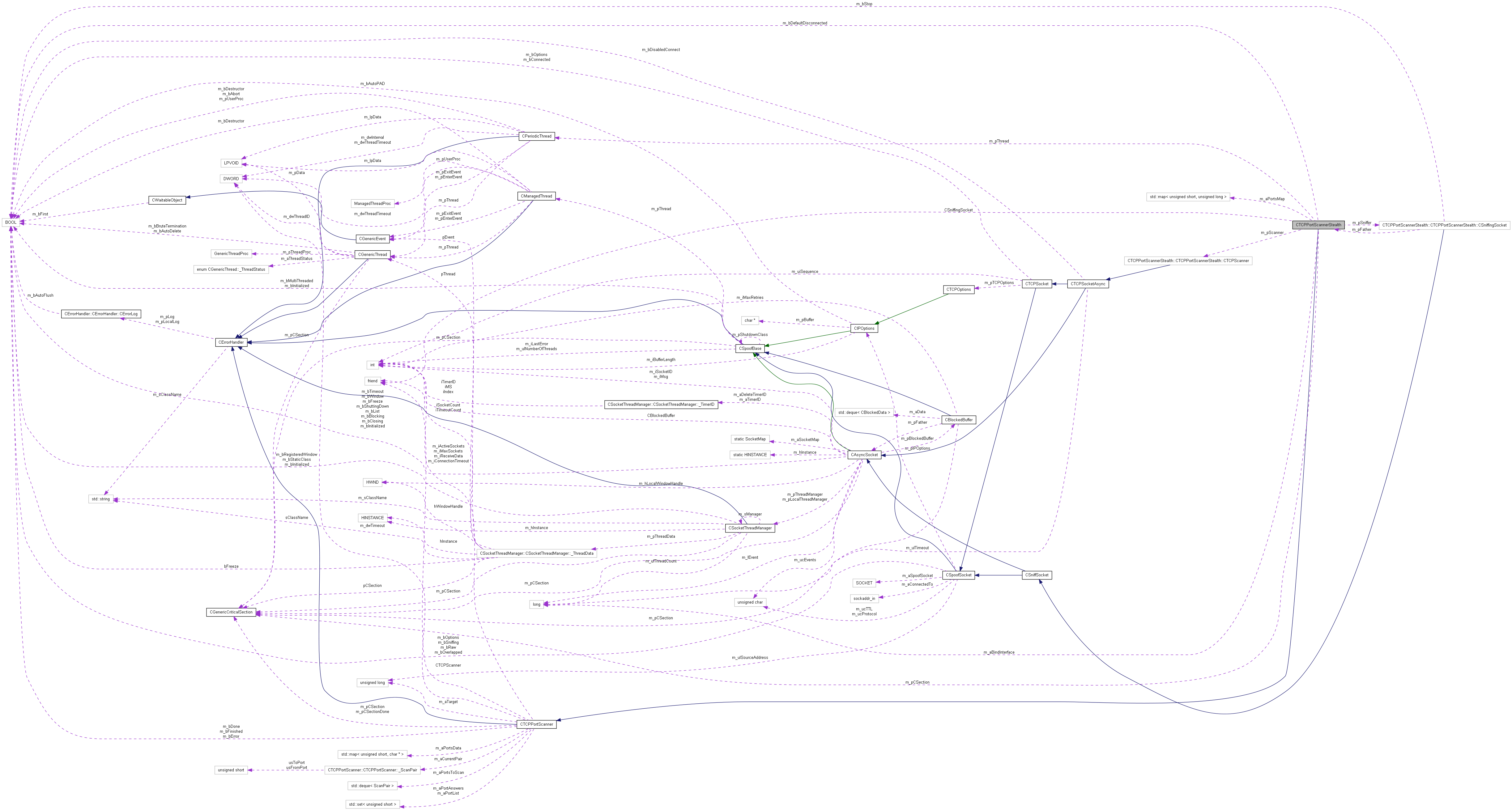

Collaboration diagram for CTCPPortScannerStealth:


Classes
class	CSniffingSocket
class	CTCPScanner
Public Types
typedef std::set< unsigned short >	PortsList
enum	_LogPriority { lpDebug, lpMessage, lpCritical, lpError }
typedef enum CErrorHandler::_LogPriority	LogPriority
Public Member Functions
virtual BOOL	Scan (const std::string &rDestinationAddress)
virtual BOOL	Scan (IP aTarget)
	CTCPPortScannerStealth (IP aBindInterface)
	CTCPPortScannerStealth (const std::string &rBindInterface)
virtual	~CTCPPortScannerStealth ()
void	SetMaxSockets (int iMaxSockets)
int	GetMaxSockets () const
void	SetConnectionTimeout (int iMS)
int	GetConnectionTimeout () const
const char *	GetData (unsigned short usPort) const
char *	GetDataForModify (unsigned short usPort) const
const PortsList &	GetPortList () const
BOOL	IsDone () const
BOOL	IsError () const
void	SetReceiveData (int iMaxDataSize, DWORD dwTimeout)
DWORD	GetReceiveDataTimeout () const
int	GetReceiveDataSize () const
virtual BOOL	StopScan ()
void	AddPorts (unsigned short usFromPort, unsigned short usToPort)
void	SetLocalLog (CErrorLog *pLog)
Static Public Member Functions
static std::string	GetCurrentDateTime ()
static std::string	ErrorCodeToString (DWORD dwErrorCode)
static void	SetLog (CErrorLog *pLog)
Protected Member Functions
virtual CTCPSocketAsync *	AllocateSocket (unsigned short usPort) const
virtual void	DestroySocket (CTCPSocketAsync *pSocket) const
virtual void	TCPScanDoneLib (BOOL bError)
virtual void	PortScanned (unsigned short usPort)
void	RemovePort (unsigned short usPort)
IP	GetBindInterface () const
void	ResetPortsData ()
void	StartThread (BOOL bDefaultDisconnected=TRUE)
virtual void	OnPort (unsigned short usPort, BOOL bConnected)
virtual void	OnPortData (unsigned short usPort, const char *pData, int iDataSize)
virtual void	TCPScanDone (BOOL bError)
void	ScanDone (BOOL bError, BOOL bSpawnThread=TRUE)
BOOL	CanScan ()
int	AdjustNumberOfSockets (int iIncrement)
unsigned short	GetNextPort ()
void	SocketDone (unsigned short usPort, BOOL bConnected)
void	SocketDone (unsigned short usPort, char *pData, int iDataSize)
void	DeletePortsMap ()
BOOL	NewSocket ()
void	SetError (BOOL bError)
void	SetDone (BOOL bDone)
void	ResetSocketCount ()
void	ResetPair ()
void	ResetData ()
void	SetTarget (IP aTarget)
IP	GetTarget () const
BOOL	IsFinished () const
const std::string &	GetClassName () const
void	WriteMessage (const std::string &rMethod, const std::string &rMessage, LogPriority aPriority=lpMessage)
void	WriteMessage (const std::string &rMethod, const std::string &rMessage, DWORD dwAdditionalData, LogPriority aPriority=lpMessage)
virtual void	ReportError (const std::string &rMethod) const
virtual void	ReportError (const std::string &rMethod, const std::string &rMessage) const
virtual void	ReportError (const std::string &rMethod, const std::string &rMessage, DWORD dwAdditionalData) const
virtual void	ReportError (const std::string &rMethod, int iErrorCode) const
virtual void	ReportError (const std::string &rMethod, const std::string &rMessage, int iErrorCode) const
virtual void	ReportErrorOS (const std::string &rMethod, const std::string &rMessage) const
void	SetName (const std::string &rName) const
Static Protected Member Functions
static void	WriteStaticMessage (const std::string &rClass, const std::string &rMethod, const std::string &rMessage, LogPriority aPriority=lpMessage)
static void	WriteStaticMessage (const std::string &rClass, const std::string &rMethod, const std::string &rMessage, DWORD dwAdditionalData, LogPriority aPriority=lpMessage)
static void	ReportStaticError (const std::string &rClass, const std::string &rMethod)
static void	ReportStaticError (const std::string &rClass, const std::string &rMethod, const std::string &rMessage)
static void	ReportStaticError (const std::string &rClass, const std::string &rMethod, const std::string &rMessage, DWORD dwAdditionalData)

Detailed Description

Definition at line 55 of file TCPPortScannerStealth.h.

Member Typedef Documentation

typedef enum CErrorHandler::_LogPriority CErrorHandler::LogPriority [inherited]

typedef std::set<unsigned short> CTCPPortScanner::PortsList [inherited]

Definition at line 59 of file TCPPortScanner.h.

Member Enumeration Documentation

enum CErrorHandler::_LogPriority [inherited]

Enumerator:

lpDebug
lpMessage
lpCritical
lpError

Definition at line 53 of file ErrorHandler.h.

00054     {
00055         lpDebug,
00056         lpMessage,
00057         lpCritical,
00058         lpError
00059     } LogPriority;

Constructor & Destructor Documentation

CTCPPortScannerStealth::CTCPPortScannerStealth ( IP aBindInterface )

Definition at line 168 of file TCPPortScannerStealth.cpp.

00168                                                                 : CTCPPortScanner(),
00169                                                                     m_pScanner(NULL),
00170                                                                     m_aBindInterface(aBindInterface),
00171                                                                     m_pSniffer(NULL),
00172                                                                     m_pCSection(NULL),
00173                                                                     m_pThread(NULL)
00174 {
00175     try
00176     {
00177         //Set our name
00178         SetName(CTCPPortScannerStealth_Class);
00179
00180         //Create the CS
00181         m_pCSection=COSManager::CreateCriticalSection();
00182     }
00183     ERROR_HANDLER("CTCPPortScannerStealth")
00184 }

CTCPPortScannerStealth::CTCPPortScannerStealth ( const std::string & rBindInterface )

Definition at line 186 of file TCPPortScannerStealth.cpp.

00186                                                                               : CTCPPortScanner(),
00187                                                                                     m_pScanner(NULL),
00188                                                                                     m_aBindInterface(0),
00189                                                                                     m_pSniffer(NULL),
00190                                                                                     m_pCSection(NULL),
00191                                                                                     m_pThread(NULL)
00192 {
00193     try
00194     {
00195         //Set our name
00196         SetName(CTCPPortScannerStealth_Class);
00197
00198         //Create the CS
00199         m_pCSection=COSManager::CreateCriticalSection();
00200
00201         //Convert the bind interface
00202         m_aBindInterface=CSpoofBase::StringToLong(rBindInterface);
00203     }
00204     ERROR_HANDLER("CTCPPortScannerStealth")
00205 }

CTCPPortScannerStealth::~CTCPPortScannerStealth ( ) [virtual]

Definition at line 207 of file TCPPortScannerStealth.cpp.

00208 {
00209     try
00210     {
00211         //Delete the thread
00212         delete m_pThread;
00213
00214         //Delete the scanner
00215         delete m_pScanner;
00216
00217         //Delete the sniffer
00218         delete m_pSniffer;
00219
00220         //Delete the CS
00221         delete m_pCSection;
00222     }
00223     ERROR_HANDLER("~CTCPPortScannerStealth")
00224 }

Member Function Documentation

void CTCPPortScanner::AddPorts	(	unsigned short	usFromPort,
		unsigned short	usToPort
	)			`[inherited]`

Definition at line 243 of file TCPPortScanner.cpp.

00245 {
00246     try
00247     {
00248         //Check we can insert them
00249         if (!(usFromPort &&
00250               usToPort &&
00251               usFromPort<=usToPort))
00252             return;
00253
00254         //Insert them
00255         ScanPair aData;
00256         aData.usFromPort=usFromPort;
00257         aData.usToPort=usToPort;
00258
00259         //Lock
00260         CCriticalAutoRelease aRelease(m_pCSection,TRUE);
00261
00262         m_aPortsToScan.push_back(aData);
00263     }
00264     ERROR_HANDLER("AddPorts")
00265 }

int CTCPPortScanner::AdjustNumberOfSockets ( int iIncrement ) [protected, inherited]

Definition at line 585 of file TCPPortScanner.cpp.

00586 {
00587     try
00588     {
00589         //Lock the data
00590         CCriticalAutoRelease aRelease(m_pCSection,TRUE);
00591
00592         //Readjust
00593         m_iActiveSockets+=iIncrement;
00594
00595         //Return it
00596         return m_iActiveSockets;
00597     }
00598     ERROR_HANDLER_RETURN("AdjustNumberOfSockets",0)
00599 }

CTCPSocketAsync * CTCPPortScannerStealth::AllocateSocket ( unsigned short usPort ) const [protected, virtual]

Reimplemented from CTCPPortScanner.

Reimplemented in CUDPScanner.

Definition at line 415 of file TCPPortScannerStealth.cpp.

00416 {
00417     return m_pScanner;
00418 }

BOOL CTCPPortScanner::CanScan ( ) [protected, inherited]

Definition at line 331 of file TCPPortScanner.cpp.

00332 {
00333     try
00334     {
00335         //Lock the data
00336         CCriticalAutoRelease aRelease(m_pCSection,TRUE);
00337
00338         //Do we have a pair
00339         if (!m_aCurrentPair.usFromPort ||
00340             !m_aCurrentPair.usToPort ||
00341             m_aCurrentPair.usFromPort>m_aCurrentPair.usToPort)
00342             //Get a pair
00343             if (m_aPortsToScan.begin()==m_aPortsToScan.end())
00344                 return FALSE;
00345             else
00346             {
00347                 //Get the pair and remove it
00348                 m_aCurrentPair=m_aPortsToScan.front();
00349                 m_aPortsToScan.pop_front();
00350             }
00351
00352         return TRUE;
00353     }
00354     ERROR_HANDLER_RETURN("CanScan",FALSE)
00355 }

void CTCPPortScanner::DeletePortsMap ( ) [protected, inherited]

Definition at line 481 of file TCPPortScanner.cpp.

00482 {
00483     try
00484     {
00485         //Get the iterator
00486         DataMap::iterator aIterator;
00487         aIterator=m_aPortsData.begin();
00488
00489         //Start
00490         while (aIterator!=m_aPortsData.end())
00491         {
00492             //Save the iterator
00493             DataMap::iterator aBackupIterator;
00494             aBackupIterator=aIterator;
00495
00496             //Advance it
00497             ++aIterator;
00498
00499             //Delete the data
00500             delete [] aBackupIterator->second;
00501
00502             //Remove the data
00503             m_aPortsData.erase(aBackupIterator);
00504         }
00505     }
00506     ERROR_HANDLER("DeletePortsMap")
00507 }

void CTCPPortScannerStealth::DestroySocket ( CTCPSocketAsync * pSocket ) const [protected, virtual]

Reimplemented from CTCPPortScanner.

Reimplemented in CUDPScanner.

Definition at line 420 of file TCPPortScannerStealth.cpp.

00421 {
00422     //Can't delete our socket!
00423 }

std::string CErrorHandler::ErrorCodeToString ( DWORD dwErrorCode ) [static, inherited]

Definition at line 122 of file ErrorHandler.cpp.

00123 {
00124     try
00125     {
00126         //Get the error string
00127         LPVOID lpMsgBuf;
00128         FormatMessage(FORMAT_MESSAGE_ALLOCATE_BUFFER |
00129                       FORMAT_MESSAGE_FROM_SYSTEM |
00130                       FORMAT_MESSAGE_IGNORE_INSERTS,
00131                       NULL,
00132                       dwErrorCode,
00133                       MAKELANGID(LANG_NEUTRAL, SUBLANG_DEFAULT), // Default language
00134                       (LPTSTR) &lpMsgBuf,
00135                       0,
00136                       NULL);
00137
00138         //Save it
00139         std::string sMessage;
00140         sMessage+=(char*)lpMsgBuf;
00141
00142         //Release the buffer
00143         LocalFree(lpMsgBuf);
00144
00145         //Done
00146         return sMessage;
00147     }
00148     catch (...)
00149     {
00150         return "Unknown";
00151     }
00152 }

IP CTCPPortScannerStealth::GetBindInterface ( ) const [protected]

Definition at line 425 of file TCPPortScannerStealth.cpp.

00426 {
00427     return m_aBindInterface;
00428 }

const std::string & CErrorHandler::GetClassName ( ) const [protected, inherited]

Reimplemented in CSocketThreadManager.

Definition at line 516 of file ErrorHandler.cpp.

00517 {
00518     return m_sClassName;
00519 }

int CTCPPortScanner::GetConnectionTimeout ( ) const [inherited]

Definition at line 732 of file TCPPortScanner.cpp.

00733 {
00734     return m_iConnectionTimeout;
00735 }

std::string CErrorHandler::GetCurrentDateTime ( ) [static, inherited]

Definition at line 521 of file ErrorHandler.cpp.

00522 {
00523     try
00524     {
00525         //Our string
00526         std::string sDate;
00527
00528         //Our tmp buf
00529         char cTmp[128];
00530
00531         //Get date
00532         _strdate(cTmp);
00533         sDate=cTmp;
00534         sDate+=' ';
00535
00536         //Get time
00537         _strtime(cTmp);
00538         sDate+=cTmp;
00539
00540         //Done
00541         return sDate;
00542     }
00543     ERROR_HANDLER_STATIC_RETURN(CErrorHandler_Class,"GetCurrentDateTime","")
00544 }

const char * CTCPPortScanner::GetData ( unsigned short usPort ) const [inherited]

Definition at line 693 of file TCPPortScanner.cpp.

00694 {
00695     try
00696     {
00697         //Try to look for the data
00698         DataMap::const_iterator aIterator;
00699         aIterator=m_aPortsData.find(usPort);
00700
00701         //Do we have it
00702         if (aIterator!=m_aPortsData.end())
00703             return aIterator->second;
00704         else
00705             return NULL;
00706     }
00707     ERROR_HANDLER_RETURN("GetData",NULL)
00708 }

char * CTCPPortScanner::GetDataForModify ( unsigned short usPort ) const [inherited]

Definition at line 710 of file TCPPortScanner.cpp.

00711 {
00712     try
00713     {
00714         //Try to look for the data
00715         DataMap::const_iterator aIterator;
00716         aIterator=m_aPortsData.find(usPort);
00717
00718         //Do we have it
00719         if (aIterator!=m_aPortsData.end())
00720             return aIterator->second;
00721         else
00722             return NULL;
00723     }
00724     ERROR_HANDLER_RETURN("GetDataForModify",NULL)
00725 }

int CTCPPortScanner::GetMaxSockets ( ) const [inherited]

Definition at line 742 of file TCPPortScanner.cpp.

00743 {
00744     return m_iMaxSockets;
00745 }

unsigned short CTCPPortScanner::GetNextPort ( ) [protected, inherited]

Definition at line 297 of file TCPPortScanner.cpp.

00298 {
00299     try
00300     {
00301         //Lock the data
00302         CCriticalAutoRelease aRelease(m_pCSection,TRUE);
00303
00304         //Do we have a pair
00305         if (!m_aCurrentPair.usFromPort ||
00306             !m_aCurrentPair.usToPort ||
00307             m_aCurrentPair.usFromPort>m_aCurrentPair.usToPort)
00308             //Get a pair
00309             if (m_aPortsToScan.begin()==m_aPortsToScan.end())
00310                 return 0;
00311             else
00312             {
00313                 //Get the pair and remove it
00314                 m_aCurrentPair=m_aPortsToScan.front();
00315                 m_aPortsToScan.pop_front();
00316             }
00317
00318         //Get the pair we want to send
00319         unsigned short usPort;
00320         usPort=m_aCurrentPair.usFromPort;
00321
00322         //Increase the port
00323         ++m_aCurrentPair.usFromPort;
00324
00325         //Done
00326         return usPort;
00327     }
00328     ERROR_HANDLER_RETURN("GetNextPort",0)
00329 }

const CTCPPortScanner::PortsList & CTCPPortScanner::GetPortList ( ) const [inherited]

Definition at line 673 of file TCPPortScanner.cpp.

00674 {
00675     return m_aPortList;
00676 }

int CTCPPortScanner::GetReceiveDataSize ( ) const [inherited]

Definition at line 292 of file TCPPortScanner.cpp.

00293 {
00294     return m_iReceiveData;
00295 }

DWORD CTCPPortScanner::GetReceiveDataTimeout ( ) const [inherited]

Definition at line 287 of file TCPPortScanner.cpp.

00288 {
00289     return m_dwTimeout;
00290 }

IP CTCPPortScanner::GetTarget ( ) const [protected, inherited]

Definition at line 771 of file TCPPortScanner.cpp.

00772 {
00773     return m_aTarget;
00774 }

BOOL CTCPPortScanner::IsDone ( ) const [inherited]

Definition at line 267 of file TCPPortScanner.cpp.

00268 {
00269     return m_bDone;
00270 }

BOOL CTCPPortScanner::IsError ( ) const [inherited]

Definition at line 357 of file TCPPortScanner.cpp.

00358 {
00359     return m_bError;
00360 }

BOOL CTCPPortScanner::IsFinished ( ) const [protected, inherited]

Definition at line 853 of file TCPPortScanner.cpp.

00854 {
00855     return m_bFinished;
00856 }

BOOL CTCPPortScanner::NewSocket ( ) [protected, inherited]

Definition at line 509 of file TCPPortScanner.cpp.

00510 {
00511     try
00512     {
00513         //Are we done
00514         if (m_bDone ||
00515             m_bFinished)
00516             return TRUE;
00517
00518         //Get a port
00519         unsigned short usPort;
00520         usPort=GetNextPort();
00521
00522         //Do we have it
00523         if (!usPort)
00524         {
00525             //Are we done
00526             if (AdjustNumberOfSockets(-1)<=0)
00527                 ScanDone(FALSE);
00528
00529             //Exit
00530             return TRUE;
00531         }
00532
00533         //Create the socket
00534         CTCPSocketAsync* pSocket;
00535         pSocket=AllocateSocket(usPort);
00536
00537         //Create it
00538         if (!pSocket)
00539         {
00540             //Are we done
00541             if (AdjustNumberOfSockets(-1)<=0 &&
00542                 !CanScan())
00543             {
00544                 //Run the scan
00545                 ScanDone(FALSE);
00546
00547                 //Exit
00548                 return TRUE;
00549             }
00550             else
00551                 return FALSE;
00552         }
00553
00554         //Connect it
00555         if (!pSocket->Connect(0,
00556                               m_aTarget,
00557                               usPort))
00558         {
00559             //Dispose the socket
00560             DestroySocket(pSocket);
00561
00562             //Are we done
00563             if (AdjustNumberOfSockets(-1)<=0 &&
00564                 !CanScan())
00565             {
00566                 //Run the scan
00567                 ScanDone(FALSE);
00568
00569                 //Exit
00570                 return TRUE;
00571             }
00572             else
00573                 return FALSE;
00574         }
00575
00576         //We scanned the port
00577         PortScanned(usPort);
00578
00579         //Done
00580         return TRUE;
00581     }
00582     ERROR_HANDLER_RETURN("NewSocket",FALSE)
00583 }

void CTCPPortScanner::OnPort	(	unsigned short	usPort,
		BOOL	bConnected
	)			`[protected, virtual, inherited]`

Definition at line 678 of file TCPPortScanner.cpp.

00680 {
00681 }

void CTCPPortScanner::OnPortData	(	unsigned short	usPort,
		const char *	pData,
		int	iDataSize
	)			`[protected, virtual, inherited]`

Definition at line 683 of file TCPPortScanner.cpp.

00686 {
00687 }

void CTCPPortScannerStealth::PortScanned ( unsigned short usPort ) [protected, virtual]

Reimplemented from CTCPPortScanner.

Definition at line 454 of file TCPPortScannerStealth.cpp.

00455 {
00456     try
00457     {
00458         //Lock
00459         CCriticalAutoRelease aRelease(m_pCSection);
00460
00461         //Add an entry to the map
00462         m_aPortsMap.insert(PortsMap::value_type(usPort,GetTickCount()));
00463     }
00464     ERROR_HANDLER("PortScanned")
00465 }

void CTCPPortScannerStealth::RemovePort ( unsigned short usPort ) [protected]

Definition at line 467 of file TCPPortScannerStealth.cpp.

00468 {
00469     try
00470     {
00471         //Lock
00472         CCriticalAutoRelease aRelease(m_pCSection);
00473
00474         //Add an entry to the map
00475         m_aPortsMap.erase(usPort);
00476     }
00477     ERROR_HANDLER("RemovePort")
00478 }

void CErrorHandler::ReportError	(	const std::string &	rMethod,
		const std::string &	rMessage,
		int	iErrorCode
	)			const `[protected, virtual, inherited]`

Definition at line 154 of file ErrorHandler.cpp.

00157 {
00158     if (!GetLog())
00159         return;
00160
00161     try
00162     {
00163         //Get the log
00164         CErrorLog* pLog;
00165         pLog=GetLog();
00166
00167         //Convert the error code
00168         char aTmp[11];
00169         sprintf(aTmp,"%d",iErrorCode);
00170
00171         //Get the string for it
00172         std::string sError;
00173         sError=rMessage;
00174         sError+=", and Socket error: ";
00175         sError+=aTmp;
00176         sError+=", ";
00177         sError+=ErrorCodeToString(iErrorCode);
00178
00179         //Report to the log
00180         pLog->ReportError(m_sClassName,
00181                           rMethod,
00182                           sError);
00183     }
00184     ERROR_UNKNOWN("ReportError")
00185 }

void CErrorHandler::ReportError	(	const std::string &	rMethod,
		int	iErrorCode
	)			const `[protected, virtual, inherited]`

Definition at line 187 of file ErrorHandler.cpp.

00189 {
00190     if (!GetLog())
00191         return;
00192
00193     try
00194     {
00195         //Get the log
00196         CErrorLog* pLog;
00197         pLog=GetLog();
00198
00199         //Convert the error code
00200         char aTmp[11];
00201         sprintf(aTmp,"%d",iErrorCode);
00202
00203         //Get the string for it
00204         std::string sError;
00205         sError="Socket error: ";
00206         sError+=aTmp;
00207         sError+=", ";
00208         sError+=ErrorCodeToString(iErrorCode);
00209
00210         //Report to the log
00211         pLog->ReportError(m_sClassName,
00212                           rMethod,
00213                           sError);
00214     }
00215     ERROR_UNKNOWN("ReportError")
00216 }

void CErrorHandler::ReportError	(	const std::string &	rMethod,
		const std::string &	rMessage,
		DWORD	dwAdditionalData
	)			const `[protected, virtual, inherited]`

Definition at line 275 of file ErrorHandler.cpp.

00278 {
00279     if (!GetLog())
00280         return;
00281
00282     try
00283     {
00284         //Get the log
00285         CErrorLog* pLog;
00286         pLog=GetLog();
00287
00288         //Convert the number
00289         char aTmp[11];
00290         ltoa(dwAdditionalData,aTmp,10);
00291
00292         //Create the new message
00293         std::string sNewMessage(rMessage);
00294         sNewMessage+="Additional data: ";
00295         sNewMessage+=aTmp;
00296
00297         //Report to the log
00298         pLog->ReportError(m_sClassName,
00299                           rMethod,
00300                           sNewMessage);
00301     }
00302     ERROR_UNKNOWN("ReportError")
00303 }

void CErrorHandler::ReportError	(	const std::string &	rMethod,
		const std::string &	rMessage
	)			const `[protected, virtual, inherited]`

Definition at line 218 of file ErrorHandler.cpp.

00220 {
00221     if (!GetLog())
00222         return;
00223
00224     try
00225     {
00226         CErrorLog* pLog;
00227         pLog=GetLog();
00228
00229         //Report to the log
00230         pLog->ReportError(m_sClassName,
00231                           rMethod,
00232                           rMessage);
00233     }
00234     ERROR_UNKNOWN("ReportError")
00235 }

void CErrorHandler::ReportError ( const std::string & rMethod ) const [protected, virtual, inherited]

Definition at line 311 of file ErrorHandler.cpp.

00312 {
00313     if (!GetLog())
00314         return;
00315
00316     try
00317     {
00318 #ifdef WIN32
00319         //Get the last error
00320         DWORD dwLastError;
00321         dwLastError=GetLastError();
00322
00323         //Report the error
00324         GetLog()->ReportError(m_sClassName,
00325                               rMethod,
00326                               ErrorCodeToString(dwLastError));
00327
00328 #else
00329         GetLog()->ReportCatchError(m_sClassName,
00330                                    rMethod,
00331                                    "Unknown error!");
00332 #endif
00333     }
00334     ERROR_UNKNOWN("ReportError")
00335 }

void CErrorHandler::ReportErrorOS	(	const std::string &	rMethod,
		const std::string &	rMessage
	)			const `[protected, virtual, inherited]`

Definition at line 237 of file ErrorHandler.cpp.

00239 {
00240     if (!GetLog())
00241         return;
00242
00243     try
00244     {
00245         //Get the last error
00246         DWORD dwLastError;
00247         dwLastError=GetLastError();
00248
00249         //Format the message
00250         std::string sMessage;
00251         sMessage=rMessage;
00252         sMessage+=", with error code: ";
00253
00254         //Convert the error code
00255         char aTmp[11];
00256         itoa(dwLastError,aTmp,10);
00257
00258         //Add it again
00259         sMessage+=aTmp;
00260         sMessage+=" ";
00261         sMessage+=ErrorCodeToString(dwLastError);
00262
00263         //Get the log
00264         CErrorLog* pLog;
00265         pLog=GetLog();
00266
00267         //Report to the log
00268         pLog->ReportError(m_sClassName,
00269                           rMethod,
00270                           sMessage);
00271     }
00272     ERROR_UNKNOWN("ReportErrorOS")
00273 }

void CErrorHandler::ReportStaticError	(	const std::string &	rClass,
		const std::string &	rMethod,
		const std::string &	rMessage,
		DWORD	dwAdditionalData
	)			`[static, protected, inherited]`

Definition at line 489 of file ErrorHandler.cpp.

00493 {
00494     if (!m_pLog)
00495         return;
00496
00497     try
00498     {
00499         //Convert the number
00500         char aTmp[11];
00501         ltoa(dwAdditionalData,aTmp,10);
00502
00503         //Create the new message
00504         std::string sNewMessage(rMessage);
00505         sNewMessage+="Additional data: ";
00506         sNewMessage+=aTmp;
00507
00508         //Report to the log
00509         m_pLog->ReportError(rClass,
00510                             rMethod,
00511                             sNewMessage);
00512     }
00513     ERROR_UNKNOWN("ReportStaticError")
00514 }

void CErrorHandler::ReportStaticError	(	const std::string &	rClass,
		const std::string &	rMethod,
		const std::string &	rMessage
	)			`[static, protected, inherited]`

Definition at line 472 of file ErrorHandler.cpp.

00475 {
00476     if (!m_pLog)
00477         return;
00478
00479     try
00480     {
00481         //Report to the log
00482         m_pLog->ReportError(rClass,
00483                             rMethod,
00484                             rMessage);
00485     }
00486     ERROR_UNKNOWN("ReportStaticError")
00487 }

void CErrorHandler::ReportStaticError	(	const std::string &	rClass,
		const std::string &	rMethod
	)			`[static, protected, inherited]`

Definition at line 446 of file ErrorHandler.cpp.

00448 {
00449     if (!m_pLog)
00450         return;
00451
00452     try
00453     {
00454 #ifdef WIN32
00455         //Get the last error
00456         DWORD dwLastError;
00457         dwLastError=GetLastError();
00458
00459         //Report the error
00460         m_pLog->ReportError(rClass,
00461                             rMethod,
00462                             ErrorCodeToString(dwLastError));
00463 #else
00464         m_pLog->ReportError(rClass,
00465                             rMethod,
00466                             "Unknown error!");
00467 #endif
00468     }
00469     ERROR_UNKNOWN("ReportStaticError")
00470 }

void CTCPPortScanner::ResetData ( ) [protected, inherited]

Definition at line 782 of file TCPPortScanner.cpp.

00783 {
00784     try
00785     {
00786         //Clear the sets
00787         m_aPortAnswers.clear();
00788         m_aPortList.clear();
00789     }
00790     ERROR_HANDLER("ResetData")
00791 }

void CTCPPortScanner::ResetPair ( ) [protected, inherited]

Definition at line 776 of file TCPPortScanner.cpp.

00777 {
00778     m_aCurrentPair.usFromPort=0;
00779     m_aCurrentPair.usToPort=0;
00780 }

void CTCPPortScannerStealth::ResetPortsData ( ) [protected]

Definition at line 551 of file TCPPortScannerStealth.cpp.

00552 {
00553     try
00554     {
00555         //Clear the map
00556         m_aPortsMap.clear();
00557     }
00558     ERROR_HANDLER("ResetPortsData")
00559 }

void CTCPPortScanner::ResetSocketCount ( ) [protected, inherited]

Definition at line 761 of file TCPPortScanner.cpp.

00762 {
00763     m_iActiveSockets=0;
00764 }

BOOL CTCPPortScannerStealth::Scan ( IP aTarget ) [virtual]

Implements CTCPPortScanner.

Reimplemented in CUDPScanner.

Definition at line 282 of file TCPPortScannerStealth.cpp.

00283 {
00284     //Check max sockets are ok
00285     if (GetMaxSockets()<=0 ||
00286         !IsDone() ||
00287         !aTarget)
00288     {
00289         //Report it
00290         ReportError("Scan","Invalid parameters!");
00291
00292         //Exit
00293         return FALSE;
00294     }
00295
00296     try
00297     {
00298         //Delete the thread
00299         delete m_pThread;
00300         m_pThread=NULL;
00301
00302         //Reset the pair
00303         ResetPair();
00304
00305         //Can we scan
00306         if (!CanScan())
00307         {
00308             //Error
00309             ReportError("Scan","No ports given!");
00310
00311             //Error
00312             SetError(TRUE);
00313
00314             //Exit
00315             return FALSE;
00316         }
00317
00318         //Clear the ports map
00319         m_aPortsMap.clear();
00320
00321         //Do we have the socket?
00322         if (m_pScanner)
00323             delete m_pScanner;
00324
00325         //Allocate it
00326         m_pScanner=new CTCPScanner;
00327
00328         //Try to create it
00329         if (!m_pScanner->Create())
00330         {
00331             //Report it
00332             ReportError("Scan","Failed to create socket!");
00333
00334             //Exit
00335             return FALSE;
00336         }
00337
00338         //Set the source address as the sniffing interface
00339         m_pScanner->SetSourceAddress(m_aBindInterface);
00340
00341         //Try to create the sniffer
00342         if (!CreateSniffer())
00343         {
00344             //Error
00345             ReportError("Scan","Failed to create sniffer!");
00346
00347             //Error
00348             SetError(TRUE);
00349
00350             //Exit
00351             return FALSE;
00352         }
00353
00354         //Set the flags
00355         SetError(FALSE);
00356         SetDone(FALSE);
00357
00358         //Save the number of max sockets
00359         ResetSocketCount();
00360
00361         //Delete the port data
00362         DeletePortsMap();
00363
00364         //Delete other data
00365         ResetData();
00366
00367         //Set our target
00368         SetTarget(aTarget);
00369
00370         //Start the sniffer
00371         if (!m_pSniffer->Sniff(TRUE))
00372         {
00373             //Error
00374             ReportError("Scan","Failed to create sniffer!");
00375
00376             //Error
00377             SetError(TRUE);
00378
00379             //We are done
00380             SetDone(TRUE);
00381
00382             //Exit
00383             return FALSE;
00384         }
00385
00386         //Start the thread
00387         StartThread();
00388
00389         //Start the loop
00390         for (int iCounter=0;
00391              iCounter<GetMaxSockets();
00392              ++iCounter)
00393         {
00394             BOOL bQuit;
00395             bQuit=FALSE;
00396
00397             //Try to allocate sockets
00398             while (!bQuit)
00399             {
00400                 //Another socket
00401                 AdjustNumberOfSockets(1);
00402
00403                 //Create it
00404                 if (!(bQuit=NewSocket()))
00405                     ReportError("Scan","Failed to create socket!");
00406             }
00407         }
00408
00409         //Done
00410         return TRUE;
00411     }
00412     ERROR_HANDLER_RETURN("Scan",FALSE)
00413 }

BOOL CTCPPortScannerStealth::Scan ( const std::string & rDestinationAddress ) [virtual]

Implements CTCPPortScanner.

Reimplemented in CUDPScanner.

Definition at line 273 of file TCPPortScannerStealth.cpp.

00274 {
00275     try
00276     {
00277         return Scan(CSpoofBase::StringToLong(rDestinationAddress));
00278     }
00279     ERROR_HANDLER_RETURN("Scan",FALSE)
00280 }

void CTCPPortScanner::ScanDone	(	BOOL	bError,
		BOOL	bSpawnThread = `TRUE`
	)			`[protected, inherited]`

Definition at line 628 of file TCPPortScanner.cpp.

00630 {
00631     try
00632     {
00633         {
00634             //Lock
00635             CCriticalAutoRelease aRelease(m_pCSectionDone);
00636
00637             //What shell we do?
00638             if (m_bDone ||
00639                 m_bFinished)
00640                 return;
00641
00642             //Set we are finished
00643             m_bFinished=TRUE;
00644         }
00645
00646         //Thread's data
00647         ThreadData* pData;
00648         pData=new ThreadData;
00649
00650         //Populate it
00651         pData->bError=bError;
00652         pData->pScanner=this;
00653
00654         //Do we have a thread
00655         if (bSpawnThread)
00656         {
00657             //Spawn a thread
00658             CGenericThread* pThread;
00659             pThread=COSManager::CreateThread(DoneThread);
00660
00661             //Set to autodelete
00662             pThread->SetAutoDelete(TRUE);
00663
00664             //Start it
00665             pThread->Start((LPVOID)pData);
00666         }
00667         else
00668             DoneThread((LPVOID)pData);
00669     }
00670     ERROR_HANDLER("ScanDone")
00671 }

void CTCPPortScanner::SetConnectionTimeout ( int iMS ) [inherited]

Definition at line 727 of file TCPPortScanner.cpp.

00728 {
00729     m_iConnectionTimeout=iMS;
00730 }

void CTCPPortScanner::SetDone ( BOOL bDone ) [protected, inherited]

Definition at line 752 of file TCPPortScanner.cpp.

00753 {
00754     m_bDone=bDone;
00755
00756     //Set the finish flag
00757     if (!bDone)
00758         m_bFinished=FALSE;
00759 }

void CTCPPortScanner::SetError ( BOOL bError ) [protected, inherited]

Definition at line 747 of file TCPPortScanner.cpp.

00748 {
00749     m_bError=bError;
00750 }

void CErrorHandler::SetLocalLog ( CErrorLog * pLog ) [inherited]

Definition at line 441 of file ErrorHandler.cpp.

00442 {
00443     m_pLocalLog=pLog;
00444 }

void CErrorHandler::SetLog ( CErrorLog * pLog ) [static, inherited]

Definition at line 305 of file ErrorHandler.cpp.

00306 {
00307     //Save the new log
00308     m_pLog=pLog;
00309 }

void CTCPPortScanner::SetMaxSockets ( int iMaxSockets ) [inherited]

Definition at line 737 of file TCPPortScanner.cpp.

00738 {
00739     m_iMaxSockets=iMaxSockets;
00740 }

void CErrorHandler::SetName ( const std::string & rName ) const [protected, inherited]

Definition at line 116 of file ErrorHandler.cpp.

00117 {
00118     //Save the class name
00119     m_sClassName=rName;
00120 }

void CTCPPortScanner::SetReceiveData	(	int	iMaxDataSize,
		DWORD	dwTimeout
	)			`[inherited]`

Definition at line 272 of file TCPPortScanner.cpp.

00274 {
00275     if (!m_bDone ||
00276         !m_bFinished)
00277         return;
00278
00279     try
00280     {
00281         m_iReceiveData=iMaxDataSize;
00282         m_dwTimeout=dwTimeout;
00283     }
00284     ERROR_HANDLER("SetReceiveData")
00285 }

void CTCPPortScanner::SetTarget ( IP aTarget ) [protected, inherited]

Definition at line 766 of file TCPPortScanner.cpp.

00767 {
00768     m_aTarget=aTarget;
00769 }

void CTCPPortScanner::SocketDone	(	unsigned short	usPort,
		char *	pData,
		int	iDataSize
	)			`[protected, inherited]`

Definition at line 420 of file TCPPortScanner.cpp.

00423 {
00424     try
00425     {
00426         if (m_bDone ||
00427             m_bFinished)
00428             return;
00429
00430         {
00431             //Lock the data
00432             CCriticalAutoRelease aRelease(m_pCSection,TRUE);
00433
00434             //Did we receive this answer already?
00435             if (m_aPortAnswers.find(usPort)!=m_aPortAnswers.end())
00436                 return;
00437
00438             //Add it to the list
00439             m_aPortList.insert(usPort);
00440
00441             //And to the existing ports
00442             m_aPortAnswers.insert(usPort);
00443
00444             //Add the data to the map
00445             m_aPortsData.insert(DataMap::value_type(usPort,pData));
00446         }
00447
00448         //Inidicate for user
00449         OnPortData(usPort,
00450                    pData,
00451                    iDataSize);
00452
00453         long lCount;
00454         lCount=AdjustNumberOfSockets(-1);
00455
00456         //Decrease our count
00457         if (!CanScan() &&
00458             lCount<=0)
00459             ScanDone(FALSE);
00460         else
00461         {
00462             //Quit flag
00463             BOOL bQuit;
00464             bQuit=FALSE;
00465
00466             //Create the socket
00467             while (!bQuit)
00468             {
00469                 //Adjust the number of sockets
00470                 AdjustNumberOfSockets(1);
00471
00472                 //Allocate it
00473                 if (!(bQuit=NewSocket()))
00474                     ReportError("SocketDone","Error creating the socket!");
00475             }
00476         }
00477     }
00478     ERROR_HANDLER("SocketDone")
00479 }

void CTCPPortScanner::SocketDone	(	unsigned short	usPort,
		BOOL	bConnected
	)			`[protected, inherited]`

Definition at line 362 of file TCPPortScanner.cpp.

00364 {
00365     try
00366     {
00367         if (m_bDone ||
00368             m_bFinished)
00369             return;
00370
00371         //Only if connected
00372         if (bConnected)
00373         {
00374             //Lock the data
00375             CCriticalAutoRelease aRelease(m_pCSection,TRUE);
00376
00377             //Did we receive this answer already?
00378             if (m_aPortAnswers.find(usPort)!=m_aPortAnswers.end())
00379                 return;
00380
00381             //Add it to the list
00382             m_aPortList.insert(usPort);
00383
00384             //And to the existing ports
00385             m_aPortAnswers.insert(usPort);
00386         }
00387
00388         //Inicate for user
00389         OnPort(usPort,
00390                bConnected);
00391
00392         long lCount;
00393         lCount=AdjustNumberOfSockets(-1);
00394
00395         //Decrease our count
00396         if (!CanScan() &&
00397             lCount<=0)
00398             ScanDone(FALSE);
00399         else
00400         {
00401             //Quit flag
00402             BOOL bQuit;
00403             bQuit=FALSE;
00404
00405             //Create the socket
00406             while (!bQuit)
00407             {
00408                 //Adjust the number of sockets
00409                 AdjustNumberOfSockets(1);
00410
00411                 //Allocate it
00412                 if (!(bQuit=NewSocket()))
00413                     ReportError("SocketDone","Error creating the socket!");
00414             }
00415         }
00416     }
00417     ERROR_HANDLER("SocketDone")
00418 }

void CTCPPortScannerStealth::StartThread ( BOOL bDefaultDisconnected = TRUE ) [protected]

Definition at line 561 of file TCPPortScannerStealth.cpp.

00562 {
00563     try
00564     {
00565         //Set disconnection mode
00566         m_bDefaultDisconnected=bDefaultDisconnected;
00567
00568         //Create the thread
00569         m_pThread=new CPeriodicThread(TimeoutProc);
00570         m_pThread->Start(500,(LPVOID)this);
00571     }
00572     ERROR_HANDLER("StartThread")
00573 }

BOOL CTCPPortScanner::StopScan ( ) [virtual, inherited]

Definition at line 858 of file TCPPortScanner.cpp.

00859 {
00860     try
00861     {
00862         //Call we are done
00863         ScanDone(TRUE,
00864                  FALSE);
00865
00866         //Done
00867         return TRUE;
00868     }
00869     ERROR_HANDLER_RETURN("StopScan",FALSE)
00870 }

void CTCPPortScanner::TCPScanDone ( BOOL bError ) [protected, virtual, inherited]

Definition at line 689 of file TCPPortScanner.cpp.

00690 {
00691 }

void CTCPPortScannerStealth::TCPScanDoneLib ( BOOL bError ) [protected, virtual]

Reimplemented from CTCPPortScanner.

Reimplemented in CUDPScanner.

Definition at line 430 of file TCPPortScannerStealth.cpp.

00431 {
00432     try
00433     {
00434         //Do we have a sniffer?
00435         if (m_pSniffer)
00436         {
00437             //Stop the sniffer
00438             m_pSniffer->Stop();
00439
00440             //Delete it from it's thread
00441             m_pSniffer->DeleteSocketFromThread();
00442
00443             //Remove it
00444             m_pSniffer=NULL;
00445         }
00446
00447         //Delete the thread
00448         delete m_pThread;
00449         m_pThread=NULL;
00450     }
00451     ERROR_HANDLER("TCPScanDoneLib")
00452 }

void CErrorHandler::WriteMessage	(	const std::string &	rMethod,
		const std::string &	rMessage,
		DWORD	dwAdditionalData,
		LogPriority	aPriority = `lpMessage`
	)			`[protected, inherited]`

Definition at line 355 of file ErrorHandler.cpp.

00359 {
00360     if (!GetLog())
00361         return;
00362
00363     try
00364     {
00365         //Convert the number
00366         char aTmp[11];
00367         ltoa(dwAdditionalData,aTmp,10);
00368
00369         //Create the new message
00370         std::string sNewMessage(rMessage);
00371         sNewMessage+="Additional data: ";
00372         sNewMessage+=aTmp;
00373
00374         //Delegate the call
00375         GetLog()->WriteMessage(m_sClassName,
00376                                rMethod,
00377                                sNewMessage,
00378                                aPriority);
00379     }
00380     ERROR_UNKNOWN("WriteMessage")
00381 }

void CErrorHandler::WriteMessage	(	const std::string &	rMethod,
		const std::string &	rMessage,
		LogPriority	aPriority = `lpMessage`
	)			`[protected, inherited]`

Definition at line 337 of file ErrorHandler.cpp.

00340 {
00341     if (!GetLog())
00342         return;
00343
00344     try
00345     {
00346         //Delegate the call
00347         GetLog()->WriteMessage(m_sClassName,
00348                                rMethod,
00349                                rMessage,
00350                                aPriority);
00351     }
00352     ERROR_UNKNOWN("WriteMessage")
00353 }

void CErrorHandler::WriteStaticMessage	(	const std::string &	rClass,
		const std::string &	rMethod,
		const std::string &	rMessage,
		DWORD	dwAdditionalData,
		LogPriority	aPriority = `lpMessage`
	)			`[static, protected, inherited]`

Definition at line 403 of file ErrorHandler.cpp.

00408 {
00409     if (!m_pLog)
00410         return;
00411
00412     try
00413     {
00414         //Convert the number
00415         char aTmp[11];
00416         ltoa(dwAdditionalData,aTmp,10);
00417
00418         //Create the new message
00419         std::string sNewMessage(rMessage);
00420         sNewMessage+="Additional data: ";
00421         sNewMessage+=aTmp;
00422
00423         //Delegate the call
00424         m_pLog->WriteMessage(rClass,
00425                              rMethod,
00426                              sNewMessage,
00427                              aPriority);
00428     }
00429     ERROR_UNKNOWN("WriteStaticMessage")
00430 }

void CErrorHandler::WriteStaticMessage	(	const std::string &	rClass,
		const std::string &	rMethod,
		const std::string &	rMessage,
		LogPriority	aPriority = `lpMessage`
	)			`[static, protected, inherited]`

Definition at line 383 of file ErrorHandler.cpp.

00388 {
00389     if (!m_pLog)
00390         return;
00391
00392     try
00393     {
00394         //Delegate the call
00395         m_pLog->WriteMessage(rClass,
00396                              rMethod,
00397                              rMessage,
00398                              aPriority);
00399     }
00400     ERROR_UNKNOWN("WriteStaticMessage")
00401 }

The documentation for this class was generated from the following files:

Retail products

Documentation

CTCPPortScannerStealth Class Reference

Classes

Public Types

Public Member Functions

Static Public Member Functions

Protected Member Functions

Static Protected Member Functions

Detailed Description

Member Typedef Documentation

Member Enumeration Documentation

Constructor & Destructor Documentation

Member Function Documentation
