CUDPRelay Class Reference

#include <UDPRelay.h>

Inheritance diagram for CUDPRelay:

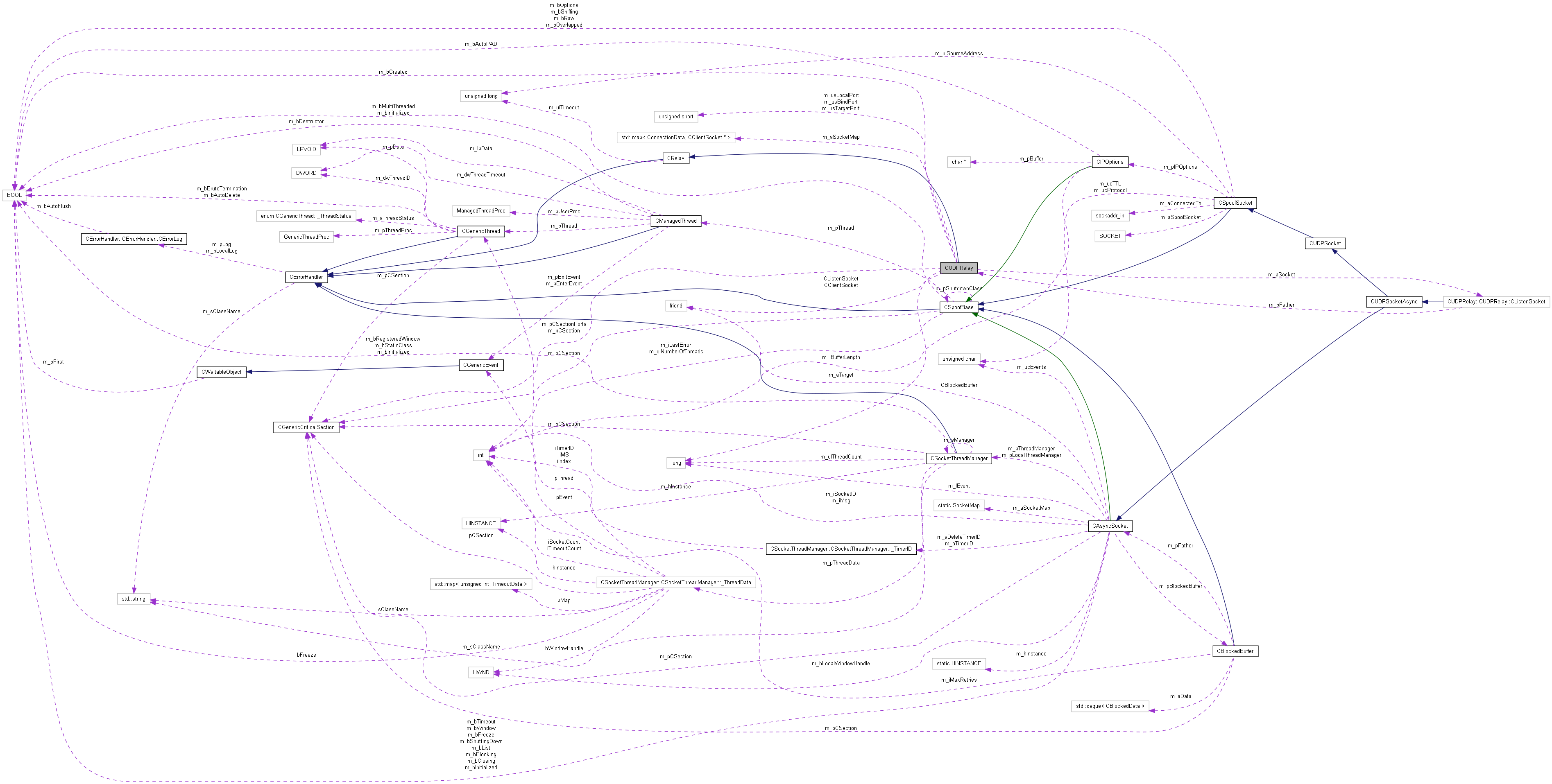

Collaboration diagram for CUDPRelay:

List of all members.


Classes

struct  _ConnectionData
class  CClientSocket
class  CListenSocket

Public Types

enum  _LogPriority { lpDebug, lpMessage, lpCritical, lpError }
typedef enum
CErrorHandler::_LogPriority
LogPriority

Public Member Functions

virtual BOOL Relay (const std::string &rBindAddress, unsigned short usBindPort, const std::string &rDestinationAddress, unsigned short usDestinationPort)
virtual BOOL Relay (IP aBindAddress, unsigned short usBindPort, IP aDestinationAddress, unsigned short usDestinationPort)
virtual BOOL Stop ()
 CUDPRelay ()
virtual ~CUDPRelay ()
void SetTimeout (unsigned long ulTimeoutMS)
unsigned long GetTimeout () const
void SetLocalLog (CErrorLog *pLog)

Static Public Member Functions

static std::string GetCurrentDateTime ()
static std::string ErrorCodeToString (DWORD dwErrorCode)
static void SetLog (CErrorLog *pLog)

Protected Member Functions

const std::string & GetClassName () const
void WriteMessage (const std::string &rMethod, const std::string &rMessage, LogPriority aPriority=lpMessage)
void WriteMessage (const std::string &rMethod, const std::string &rMessage, DWORD dwAdditionalData, LogPriority aPriority=lpMessage)
virtual void ReportError (const std::string &rMethod) const
virtual void ReportError (const std::string &rMethod, const std::string &rMessage) const
virtual void ReportError (const std::string &rMethod, const std::string &rMessage, DWORD dwAdditionalData) const
virtual void ReportError (const std::string &rMethod, int iErrorCode) const
virtual void ReportError (const std::string &rMethod, const std::string &rMessage, int iErrorCode) const
virtual void ReportErrorOS (const std::string &rMethod, const std::string &rMessage) const
void SetName (const std::string &rName) const

Static Protected Member Functions

static void WriteStaticMessage (const std::string &rClass, const std::string &rMethod, const std::string &rMessage, LogPriority aPriority=lpMessage)
static void WriteStaticMessage (const std::string &rClass, const std::string &rMethod, const std::string &rMessage, DWORD dwAdditionalData, LogPriority aPriority=lpMessage)
static void ReportStaticError (const std::string &rClass, const std::string &rMethod)
static void ReportStaticError (const std::string &rClass, const std::string &rMethod, const std::string &rMessage)
static void ReportStaticError (const std::string &rClass, const std::string &rMethod, const std::string &rMessage, DWORD dwAdditionalData)

Detailed Description

Definition at line 51 of file UDPRelay.h.


Member Typedef Documentation


Member Enumeration Documentation

enum CErrorHandler::_LogPriority [inherited]

Enumerator:
lpDebug
lpMessage
lpCritical
lpError

Definition at line 53 of file ErrorHandler.h.

00054     {
00055         lpDebug,
00056         lpMessage,
00057         lpCritical,
00058         lpError
00059     } LogPriority;


Constructor & Destructor Documentation

CUDPRelay::CUDPRelay (  )

Definition at line 246 of file UDPRelay.cpp.

00246                      : CRelay(),
00247                          m_pSocket(NULL),
00248                          m_bCreated(FALSE),
00249                          m_aTarget(0),
00250                          m_usTargetPort(0),
00251                          m_pCSection(NULL),
00252                          m_pCSectionPorts(NULL),
00253                          m_usBindPort(0)
00254 {
00255     try
00256     {
00257         //Set our name
00258         SetName(CUDPRelay_Class);
00259
00260         //Create the CS
00261         m_pCSection=COSManager::CreateCriticalSection();
00262         m_pCSectionPorts=COSManager::CreateCriticalSection();
00263     }
00264     ERROR_HANDLER("CUDPRelay")
00265 }

CUDPRelay::~CUDPRelay (  )  [virtual]

Definition at line 267 of file UDPRelay.cpp.

00268 {
00269     try
00270     {
00271         delete m_pCSection;
00272         delete m_pCSectionPorts;
00273     }
00274     ERROR_HANDLER("~CUDPRelay")
00275 }


Member Function Documentation

std::string CErrorHandler::ErrorCodeToString ( DWORD  dwErrorCode  )  [static, inherited]

Definition at line 122 of file ErrorHandler.cpp.

00123 {
00124     try
00125     {
00126         //Get the error string
00127         LPVOID lpMsgBuf;
00128         FormatMessage(FORMAT_MESSAGE_ALLOCATE_BUFFER |
00129                       FORMAT_MESSAGE_FROM_SYSTEM |
00130                       FORMAT_MESSAGE_IGNORE_INSERTS,
00131                       NULL,
00132                       dwErrorCode,
00133                       MAKELANGID(LANG_NEUTRAL, SUBLANG_DEFAULT), // Default language
00134                       (LPTSTR) &lpMsgBuf,
00135                       0,
00136                       NULL);
00137
00138         //Save it
00139         std::string sMessage;
00140         sMessage+=(char*)lpMsgBuf;
00141
00142         //Release the buffer
00143         LocalFree(lpMsgBuf);
00144
00145         //Done
00146         return sMessage;
00147     }
00148     catch (...)
00149     {
00150         return "Unknown";
00151     }
00152 }

const std::string & CErrorHandler::GetClassName (  )  const [protected, inherited]

Reimplemented in CSocketThreadManager.

Definition at line 516 of file ErrorHandler.cpp.

00517 {
00518     return m_sClassName;
00519 }

std::string CErrorHandler::GetCurrentDateTime (  )  [static, inherited]

Definition at line 521 of file ErrorHandler.cpp.

00522 {
00523     try
00524     {
00525         //Our string
00526         std::string sDate;
00527
00528         //Our tmp buf
00529         char cTmp[128];
00530
00531         //Get date
00532         _strdate(cTmp);
00533         sDate=cTmp;
00534         sDate+=' ';
00535
00536         //Get time
00537         _strtime(cTmp);
00538         sDate+=cTmp;
00539
00540         //Done
00541         return sDate;
00542     }
00543     ERROR_HANDLER_STATIC_RETURN(CErrorHandler_Class,"GetCurrentDateTime","")
00544 }

unsigned long CRelay::GetTimeout (  )  const [inherited]

Definition at line 71 of file Relay.cpp.

00072 {
00073     return m_ulTimeout;
00074 }

BOOL CUDPRelay::Relay ( IP  aBindAddress,
unsigned short  usBindPort,
IP  aDestinationAddress,
unsigned short  usDestinationPort
) [virtual]

Implements CRelay.

Definition at line 277 of file UDPRelay.cpp.

00281 {
00282     try
00283     {
00284         //Are we created?
00285         if (m_bCreated)
00286         {
00287             //Report it
00288             ReportError("Relay","Already created!");
00289
00290             //Exit
00291             return FALSE;
00292         }
00293
00294         //Create the socket
00295         m_pSocket=new CListenSocket(this);
00296
00297         //Protect it
00298         std::auto_ptr<CListenSocket> pProtection(m_pSocket);
00299
00300         //Try to create it
00301         if (!m_pSocket->Create())
00302         {
00303             //Report it
00304             ReportError("Relay","Failed to create socket!");
00305
00306             //Exit
00307             return FALSE;
00308         }
00309
00310         //Try to bind it
00311         if (!m_pSocket->Bind(aBindAddress,
00312                              usBindPort))
00313         {
00314             //Report it
00315             ReportError("Relay","Failed to create socket!");
00316
00317             //Exit
00318             return FALSE;
00319         }
00320
00321         //Save the data
00322         m_aTarget=aDestinationAddress;
00323         m_usTargetPort=usDestinationPort;
00324         m_usBindPort=usBindPort;
00325
00326         //Set local port
00327         m_usLocalPort=1024;
00328
00329         //Try to listen
00330         if (!m_pSocket->Listen())
00331         {
00332             //Report it
00333             ReportError("Relay","Failed to listen!");
00334
00335             //Exit
00336             return FALSE;
00337         }
00338
00339         //Remove protection
00340         pProtection.release();
00341
00342         //We are done
00343         m_bCreated=TRUE;
00344
00345         //Done
00346         return TRUE;
00347     }
00348     ERROR_HANDLER_RETURN("Relay",FALSE)
00349 }

BOOL CUDPRelay::Relay ( const std::string &  rBindAddress,
unsigned short  usBindPort,
const std::string &  rDestinationAddress,
unsigned short  usDestinationPort
) [virtual]

Implements CRelay.

Definition at line 351 of file UDPRelay.cpp.

00355 {
00356     try
00357     {
00358         return Relay(CSpoofBase::StringToLong(rBindAddress),
00359                      usBindPort,
00360                      CSpoofBase::StringToLong(rDestinationAddress),
00361                      usDestinationPort);
00362     }
00363     ERROR_HANDLER_RETURN("Relay",FALSE)
00364 }

void CErrorHandler::ReportError ( const std::string &  rMethod,
const std::string &  rMessage,
int  iErrorCode
) const [protected, virtual, inherited]

Definition at line 154 of file ErrorHandler.cpp.

00157 {
00158     if (!GetLog())
00159         return;
00160
00161     try
00162     {
00163         //Get the log
00164         CErrorLog* pLog;
00165         pLog=GetLog();
00166
00167         //Convert the error code
00168         char aTmp[11];
00169         sprintf(aTmp,"%d",iErrorCode);
00170
00171         //Get the string for it
00172         std::string sError;
00173         sError=rMessage;
00174         sError+=", and Socket error: ";
00175         sError+=aTmp;
00176         sError+=", ";
00177         sError+=ErrorCodeToString(iErrorCode);
00178
00179         //Report to the log
00180         pLog->ReportError(m_sClassName,
00181                           rMethod,
00182                           sError);
00183     }
00184     ERROR_UNKNOWN("ReportError")
00185 }

void CErrorHandler::ReportError ( const std::string &  rMethod,
int  iErrorCode
) const [protected, virtual, inherited]

Definition at line 187 of file ErrorHandler.cpp.

00189 {
00190     if (!GetLog())
00191         return;
00192
00193     try
00194     {
00195         //Get the log
00196         CErrorLog* pLog;
00197         pLog=GetLog();
00198
00199         //Convert the error code
00200         char aTmp[11];
00201         sprintf(aTmp,"%d",iErrorCode);
00202
00203         //Get the string for it
00204         std::string sError;
00205         sError="Socket error: ";
00206         sError+=aTmp;
00207         sError+=", ";
00208         sError+=ErrorCodeToString(iErrorCode);
00209
00210         //Report to the log
00211         pLog->ReportError(m_sClassName,
00212                           rMethod,
00213                           sError);
00214     }
00215     ERROR_UNKNOWN("ReportError")
00216 }

void CErrorHandler::ReportError ( const std::string &  rMethod,
const std::string &  rMessage,
DWORD  dwAdditionalData
) const [protected, virtual, inherited]

Definition at line 275 of file ErrorHandler.cpp.

00278 {
00279     if (!GetLog())
00280         return;
00281
00282     try
00283     {
00284         //Get the log
00285         CErrorLog* pLog;
00286         pLog=GetLog();
00287
00288         //Convert the number
00289         char aTmp[11];
00290         ltoa(dwAdditionalData,aTmp,10);
00291
00292         //Create the new message
00293         std::string sNewMessage(rMessage);
00294         sNewMessage+="Additional data: ";
00295         sNewMessage+=aTmp;
00296
00297         //Report to the log
00298         pLog->ReportError(m_sClassName,
00299                           rMethod,
00300                           sNewMessage);
00301     }
00302     ERROR_UNKNOWN("ReportError")
00303 }

void CErrorHandler::ReportError ( const std::string &  rMethod,
const std::string &  rMessage
) const [protected, virtual, inherited]

Definition at line 218 of file ErrorHandler.cpp.

00220 {
00221     if (!GetLog())
00222         return;
00223
00224     try
00225     {
00226         CErrorLog* pLog;
00227         pLog=GetLog();
00228
00229         //Report to the log
00230         pLog->ReportError(m_sClassName,
00231                           rMethod,
00232                           rMessage);
00233     }
00234     ERROR_UNKNOWN("ReportError")
00235 }

void CErrorHandler::ReportError ( const std::string &  rMethod  )  const [protected, virtual, inherited]

Definition at line 311 of file ErrorHandler.cpp.

00312 {
00313     if (!GetLog())
00314         return;
00315
00316     try
00317     {
00318 #ifdef WIN32
00319         //Get the last error
00320         DWORD dwLastError;
00321         dwLastError=GetLastError();
00322
00323         //Report the error
00324         GetLog()->ReportError(m_sClassName,
00325                               rMethod,
00326                               ErrorCodeToString(dwLastError));
00327
00328 #else
00329         GetLog()->ReportCatchError(m_sClassName,
00330                                    rMethod,
00331                                    "Unknown error!");
00332 #endif
00333     }
00334     ERROR_UNKNOWN("ReportError")
00335 }

void CErrorHandler::ReportErrorOS ( const std::string &  rMethod,
const std::string &  rMessage
) const [protected, virtual, inherited]

Definition at line 237 of file ErrorHandler.cpp.

00239 {
00240     if (!GetLog())
00241         return;
00242
00243     try
00244     {
00245         //Get the last error
00246         DWORD dwLastError;
00247         dwLastError=GetLastError();
00248
00249         //Format the message
00250         std::string sMessage;
00251         sMessage=rMessage;
00252         sMessage+=", with error code: ";
00253
00254         //Convert the error code
00255         char aTmp[11];
00256         itoa(dwLastError,aTmp,10);
00257
00258         //Add it again
00259         sMessage+=aTmp;
00260         sMessage+=" ";
00261         sMessage+=ErrorCodeToString(dwLastError);
00262
00263         //Get the log
00264         CErrorLog* pLog;
00265         pLog=GetLog();
00266
00267         //Report to the log
00268         pLog->ReportError(m_sClassName,
00269                           rMethod,
00270                           sMessage);
00271     }
00272     ERROR_UNKNOWN("ReportErrorOS")
00273 }

void CErrorHandler::ReportStaticError ( const std::string &  rClass,
const std::string &  rMethod,
const std::string &  rMessage,
DWORD  dwAdditionalData
) [static, protected, inherited]

Definition at line 489 of file ErrorHandler.cpp.

00493 {
00494     if (!m_pLog)
00495         return;
00496
00497     try
00498     {
00499         //Convert the number
00500         char aTmp[11];
00501         ltoa(dwAdditionalData,aTmp,10);
00502
00503         //Create the new message
00504         std::string sNewMessage(rMessage);
00505         sNewMessage+="Additional data: ";
00506         sNewMessage+=aTmp;
00507
00508         //Report to the log
00509         m_pLog->ReportError(rClass,
00510                             rMethod,
00511                             sNewMessage);
00512     }
00513     ERROR_UNKNOWN("ReportStaticError")
00514 }

void CErrorHandler::ReportStaticError ( const std::string &  rClass,
const std::string &  rMethod,
const std::string &  rMessage
) [static, protected, inherited]

Definition at line 472 of file ErrorHandler.cpp.

00475 {
00476     if (!m_pLog)
00477         return;
00478
00479     try
00480     {
00481         //Report to the log
00482         m_pLog->ReportError(rClass,
00483                             rMethod,
00484                             rMessage);
00485     }
00486     ERROR_UNKNOWN("ReportStaticError")
00487 }

void CErrorHandler::ReportStaticError ( const std::string &  rClass,
const std::string &  rMethod
) [static, protected, inherited]

Definition at line 446 of file ErrorHandler.cpp.

00448 {
00449     if (!m_pLog)
00450         return;
00451
00452     try
00453     {
00454 #ifdef WIN32
00455         //Get the last error
00456         DWORD dwLastError;
00457         dwLastError=GetLastError();
00458
00459         //Report the error
00460         m_pLog->ReportError(rClass,
00461                             rMethod,
00462                             ErrorCodeToString(dwLastError));
00463 #else
00464         m_pLog->ReportError(rClass,
00465                             rMethod,
00466                             "Unknown error!");
00467 #endif
00468     }
00469     ERROR_UNKNOWN("ReportStaticError")
00470 }

void CErrorHandler::SetLocalLog ( CErrorLog pLog  )  [inherited]

Definition at line 441 of file ErrorHandler.cpp.

00442 {
00443     m_pLocalLog=pLog;
00444 }

void CErrorHandler::SetLog ( CErrorLog pLog  )  [static, inherited]

Definition at line 305 of file ErrorHandler.cpp.

00306 {
00307     //Save the new log
00308     m_pLog=pLog;
00309 }

void CErrorHandler::SetName ( const std::string &  rName  )  const [protected, inherited]

Definition at line 116 of file ErrorHandler.cpp.

00117 {
00118     //Save the class name
00119     m_sClassName=rName;
00120 }

void CRelay::SetTimeout ( unsigned long  ulTimeoutMS  )  [inherited]

Definition at line 66 of file Relay.cpp.

00067 {
00068     m_ulTimeout=ulTimeoutMS;
00069 }

BOOL CUDPRelay::Stop (  )  [virtual]

Implements CRelay.

Definition at line 524 of file UDPRelay.cpp.

00525 {
00526     try
00527     {
00528         //Are we created?
00529         if (!m_bCreated)
00530             return TRUE;
00531
00532         //Delete the listener
00533         m_pSocket->DeleteSocketFromThread();
00534         m_pSocket=NULL;
00535
00536         {
00537             //Lock
00538             CCriticalAutoRelease aRelease(m_pCSection);
00539
00540             //Iterate the data
00541             SocketMap::iterator aIterator;
00542             aIterator=m_aSocketMap.begin();
00543             while (aIterator!=m_aSocketMap.end())
00544             {
00545                 //Signal the socket
00546                 aIterator->second->DeleteSocketFromThread();
00547
00548                 //Erase
00549                 aIterator=m_aSocketMap.erase(aIterator);
00550             }
00551         }
00552
00553         //We are not created
00554         m_bCreated=FALSE;
00555
00556         //Done
00557         return TRUE;
00558     }
00559     ERROR_HANDLER_RETURN("Stop",FALSE)
00560 }

void CErrorHandler::WriteMessage ( const std::string &  rMethod,
const std::string &  rMessage,
DWORD  dwAdditionalData,
LogPriority  aPriority = lpMessage
) [protected, inherited]

Definition at line 355 of file ErrorHandler.cpp.

00359 {
00360     if (!GetLog())
00361         return;
00362
00363     try
00364     {
00365         //Convert the number
00366         char aTmp[11];
00367         ltoa(dwAdditionalData,aTmp,10);
00368
00369         //Create the new message
00370         std::string sNewMessage(rMessage);
00371         sNewMessage+="Additional data: ";
00372         sNewMessage+=aTmp;
00373
00374         //Delegate the call
00375         GetLog()->WriteMessage(m_sClassName,
00376                                rMethod,
00377                                sNewMessage,
00378                                aPriority);
00379     }
00380     ERROR_UNKNOWN("WriteMessage")
00381 }

void CErrorHandler::WriteMessage ( const std::string &  rMethod,
const std::string &  rMessage,
LogPriority  aPriority = lpMessage
) [protected, inherited]

Definition at line 337 of file ErrorHandler.cpp.

00340 {
00341     if (!GetLog())
00342         return;
00343
00344     try
00345     {
00346         //Delegate the call
00347         GetLog()->WriteMessage(m_sClassName,
00348                                rMethod,
00349                                rMessage,
00350                                aPriority);
00351     }
00352     ERROR_UNKNOWN("WriteMessage")
00353 }

void CErrorHandler::WriteStaticMessage ( const std::string &  rClass,
const std::string &  rMethod,
const std::string &  rMessage,
DWORD  dwAdditionalData,
LogPriority  aPriority = lpMessage
) [static, protected, inherited]

Definition at line 403 of file ErrorHandler.cpp.

00408 {
00409     if (!m_pLog)
00410         return;
00411
00412     try
00413     {
00414         //Convert the number
00415         char aTmp[11];
00416         ltoa(dwAdditionalData,aTmp,10);
00417
00418         //Create the new message
00419         std::string sNewMessage(rMessage);
00420         sNewMessage+="Additional data: ";
00421         sNewMessage+=aTmp;
00422
00423         //Delegate the call
00424         m_pLog->WriteMessage(rClass,
00425                              rMethod,
00426                              sNewMessage,
00427                              aPriority);
00428     }
00429     ERROR_UNKNOWN("WriteStaticMessage")
00430 }

void CErrorHandler::WriteStaticMessage ( const std::string &  rClass,
const std::string &  rMethod,
const std::string &  rMessage,
LogPriority  aPriority = lpMessage
) [static, protected, inherited]

Definition at line 383 of file ErrorHandler.cpp.

00388 {
00389     if (!m_pLog)
00390         return;
00391
00392     try
00393     {
00394         //Delegate the call
00395         m_pLog->WriteMessage(rClass,
00396                              rMethod,
00397                              rMessage,
00398                              aPriority);
00399     }
00400     ERROR_UNKNOWN("WriteStaticMessage")
00401 }


The documentation for this class was generated from the following files:
